Necessary preliminary work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove ROOFLINER
Partially remove HEAD AIRBAG
Open tailgate

IMPORTANT: Two persons are required to help in removing the glass slide/tilt sunroof.

Remove holder for handle at front:

Unscrew screws (1).
Tightening torque: 51 71 07AZ .
Remove holder (2).

Fig 1: Identifying Screws And Holder
Courtesy of BMW OF NORTH AMERICA, INC.

Remove holder for handle at rear:

Release screw (1) from holder for airbag folding pack
Tightening torque: 72 12 04AZ .
Unscrew screws (2).
Remove holder (3) and suspension (4) for dividing net

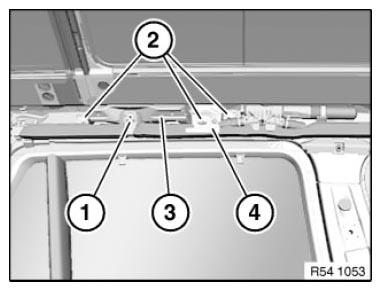

Fig 2: Identifying Screw, Holder And Suspension
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Close floating roofliner until roof-mounted aerial is accessible.

Unfasten plug connection (1) and disconnect.

Unclip Omega cable tie (2).

Unlock and disconnect plug connection (3) at control unit.

Installation note:

Initialize (see 54 0... Notes on panorama glass roof (initialization/normalization of characteristic curve) glass slide/tilt sunroof. glass slide/tilt sunroof.

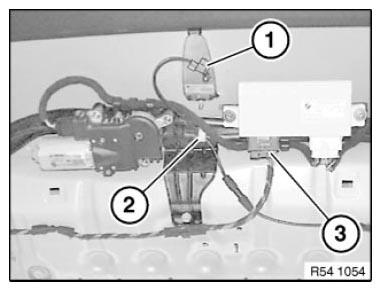

Fig 3: Identifying Plug Connection And Omega Cable Tie

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Airbag lead (1) must not be damaged.

Detach metal tab clips with airbag lead (1) from glass slide/tilt sunroof frame.

Installation note:

Lay airbag lead (1) without tension or kinks.

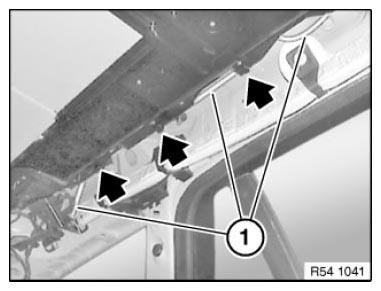

Fig 4: Identifying Airbag Lead

Courtesy of BMW OF NORTH AMERICA, INC.

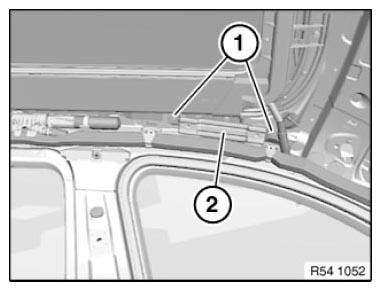

Fig 5: Identifying Water Drain Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Detach water drain hoses (1)
NOTE: Check hoses for damage and moisten with water before fitting
Release screws in marked area
Tightening torque: 54 12 02AZ .

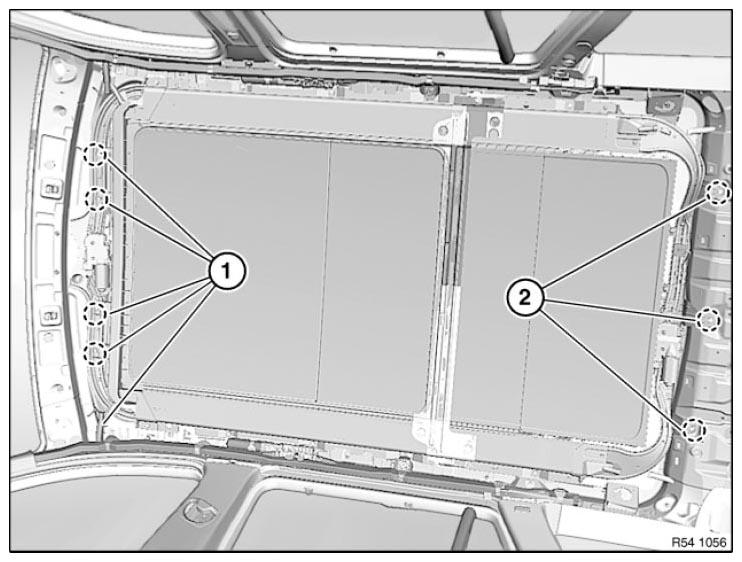

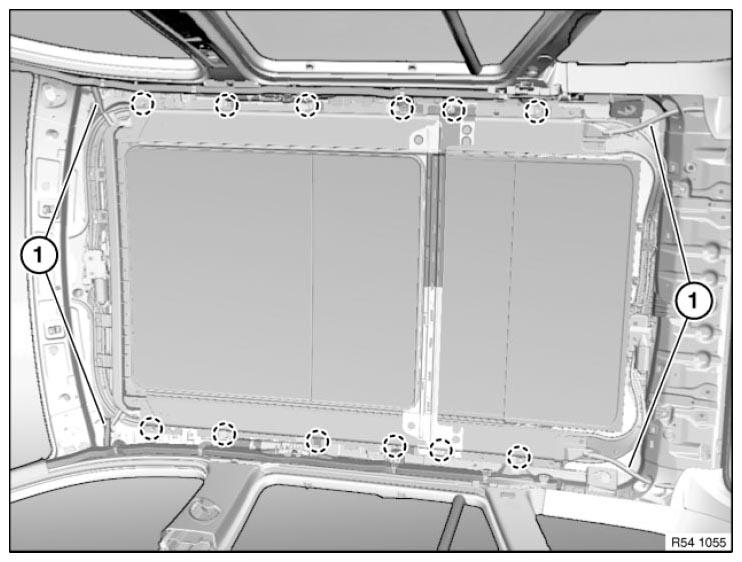

Fig 6: Identifying Screws
Courtesy of BMW OF NORTH AMERICA, INC.
Helper must hold glass slide/tilt sunroof to prevent it falling out.
Release screws (1) (during installation: fit shims)
Release screws (2) on and carefully lower slide/tilt sunroof.
Remove glass slide/tilt sunroof completely (through rear lid at rear).

IMPORTANT: Do not damage any surrounding components when removing the glass slide/tilt sunroof.

Replacement:

Carry out vehicle programming/encoding.

Installation note:

If necessary, remove fabric adhesive tape.

To stop creaking noises, secure all screws (1) prior to installation with plastic washers (2).

If the standard screws can no longer grip, use "repair screws" (have larger threads).

IMPORTANT: Do not crush any cables when installing the glass slide/tilt sunroof. Initialize (see 54 0... Notes on panorama glass roof (initialization/normalization of characteristic curve) glass slide/tilt sunroof.

Fig 7: Identifying Plastic Washers With Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 8: Inserting Special Tool (54 1 110) Into Locating Holes

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

To align panorama glass roof to body aperture, insert screws and tighten loosely.

Panorama glass roof must still be able to move in the body aperture.

On account of leaks, panorama glass roof must be exactly aligned to body aperture.

Insert special tool 54 1 110 into locating holes in panorama roof and body fully.

Tighten down screws.

Tightening torque 54 12 02AZ .

IMPORTANT: Do not crush any cables when installing the glass slide/tilt sunroof.

After installation:

Check glass slide/tilt sunroof cover for correct ALIGNMENT and adjust if necessary.

Initialize (see 54 0... Notes on panorama glass roof (initialization/normalization of characteristic curve) glass slide/tilt sunroof.
