54 13 050 Replacing gasket for rear slide/tilt sunroof lid

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Open glass slide/tilt sunroof

NOTE: Follow REPAIR INSTRUCTIONS for bonded sealing on glass slide/tilt sunroof.

Remove sealing (1) from slide/tilt sunroof lid.

Installation note:

Clean bonding surface with adhesive remover (sourcing reference: BMW Parts Department).

Press sealing without stretching (squashing).

IMPORTANT: Do not touch adhesive area.
Surface temperature ≥20°C
Incorrect bonding of the sealing will result in leaks.

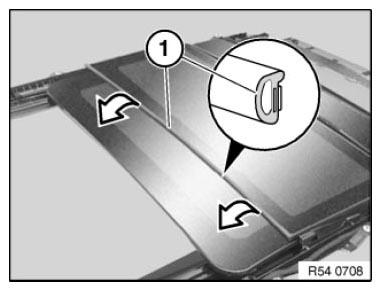

Fig 1: Removing Sealing From Slide/Tilt Sunroof Lid

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Completely move glass slide/tilt sunroof cover. ADJUST glass slide/tilt sunroof cover.
