54 10... Removing and installing/replacing water drain channel strainer on left and right

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

See REMOVING AND INSTALLING COMPLETE GLASS SLIDE/TILT SUNROOF .

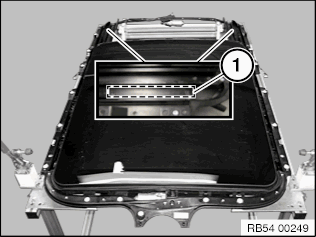

Unclip water drain channel strainer (1) in area (2) and use a suitable tool to lever out of glass slide/tilt sunroof (3).

NOTE: Water drain channel strainer (1) is bonded with window glass adhesive.

Fig 1: Removing Water Drain Channel Strainer (1 Of 5)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Remove window glass adhesive remnants in marked area (1).

Clean water channel and degrease installation area for water drain channel strainer.

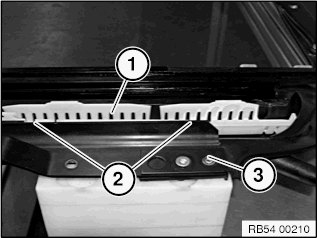

Fig 2: Removing Water Drain Channel Strainer (2 Of 5)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Degrease underside of water drain channel strainer (1).

Apply window glass adhesive A = 10 mm.

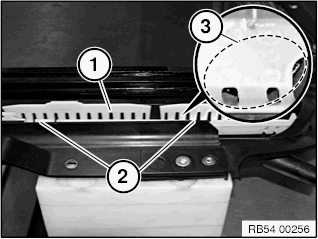

Fig 3: Removing Water Drain Channel Strainer (3 Of 5)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Correctly position water drain channel strainer (1) above water drain channel before bonding. Align strainer end at the end of water drain channel (2) and support tab (3) as close to the end of guide rail (4) as possible.

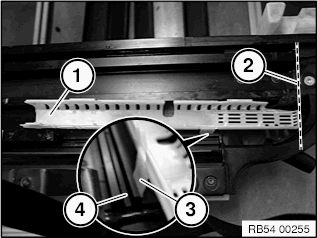

Fig 4: Removing Water Drain Channel Strainer (4 Of 5)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

After correctly positioning the water drain channel strainer (1), press it down by applying light pressure until it engages.

IMPORTANT:

Ensure that retaining lugs (2) are correctly engaged in guide rail.

Check if excess adhesive emerges. To ensure that water can drain correctly, adhere to the specifications for the maximum amount of window glass adhesive (3).

Fig 5: Removing Water Drain Channel Strainer (5 Of 5)

Courtesy of BMW OF NORTH AMERICA, INC.

Before installation of glass slide/tilt sunroof, check water drain hoses for continuity. Clean water drain hoses as required.
