Necessary preliminary work
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
Overview of glass lid mechanism:

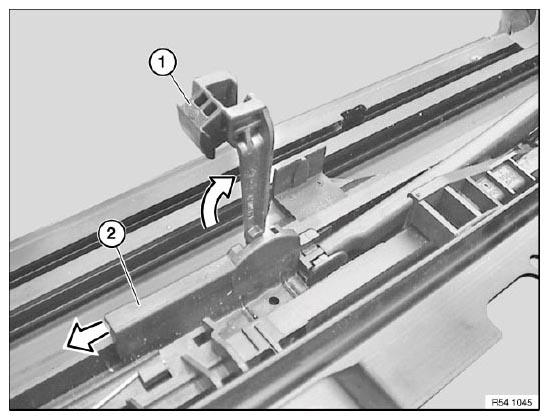

If necessary, remove drive wedge (1).
If necessary, slide drive cable plate (2) towards rear and remove from guide rail.
IMPORTANT:
Risk of damage when installing drive cable plate

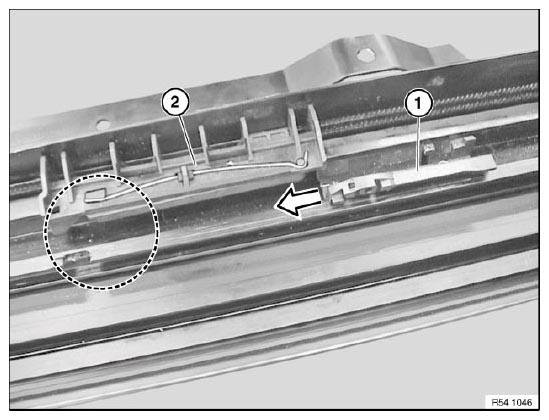

The rear drive cable plate (2) must be engaged before the front drive cable plate (1) is installed.
Incorrect setting can be identified from spring position and lever position (marked area).
Check engagement of rear drive cable plate (2) in guide rail.
Slide in drive cable plate (1).
The rear drive cable plate (2) must be engaged before the front drive cable plate (1) is installed.
Incorrect setting can be identified from spring position and lever position (marked area).
Check engagement of rear drive cable plate (2) in guide rail.
Slide in drive cable plate (1).
Installation note:
Observe GREASE INSTRUCTIONS for replacement parts.
