Necessary preliminary work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove GLASS SLIDE/TILT SUNROOF COVER AT REAR .
Remove FRONT WATER CHANNEL .

Open floating headlining (2) to the point where the screws (1) are accessible.

Release screws (1) on floating headlining holder.

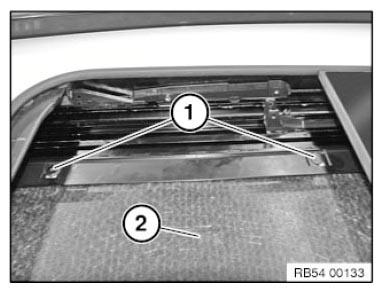

Fig 1: Identifying Open Floating Headlining And Screws

G06979590

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not damage floating headlining rocker arm.

Pull tension springs (2) out from under floating headlining holder (1).

Fig 2: Identifying Open Floating Headlining And Tension Spring

G06979591

Courtesy of BMW OF NORTH AMERICA, INC.

Press floating headlining (1) upward in the direction of the arrow.

Pull glider set (2) out of guide rail.

Installation note:

Observe GREASE INSTRUCTIONS for replacement parts.

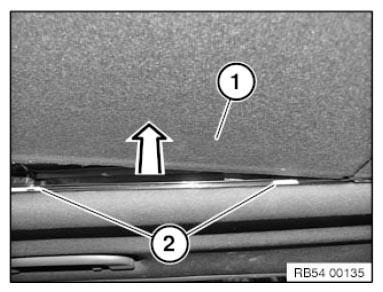

Fig 3: Pressing Floating Headlining

G06979592

Courtesy of BMW OF NORTH AMERICA, INC.

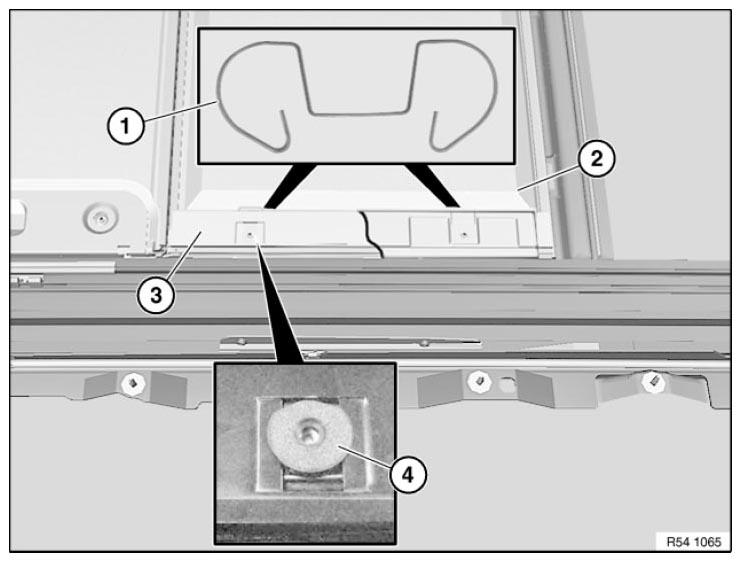

Fig 4: Identifying Tension Springs, Floating Headlining And Washers

G06979593

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Version with spring on one side:

Tension springs (1) must rest correctly in recess of rear floating headlining (2).

On left side, ensure that washer (4) with anti-twist lock is in the right position.

Right side: insert white plastic washers.

Version with springs on both sides:

Replace microencapsulated screws.

Tightening torque 54 12 05AZ .
