71 60... Removal with gear unit blocked

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Perform the following operations if the gear unit cannot be removed.

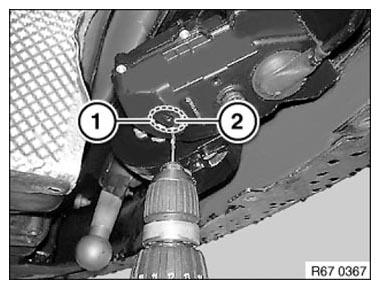

Drill out gear unit along dashed line (1) all round and remove plastic part (2).

Fig 1: Drilling Out Gear Unit Along Dashed Line All Round

Courtesy of BMW OF NORTH AMERICA, INC.

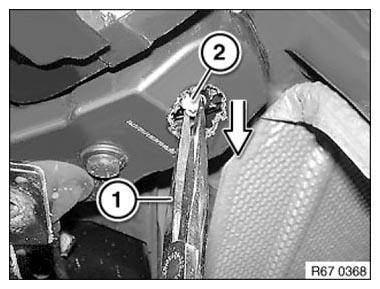

Using a suitable tool (1), pull locking pin (2) in direction of arrow out of gear unit.

Remove gear unit.

Fig 2: Removing Gear Unit

Courtesy of BMW OF NORTH AMERICA, INC.
