Removal And Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove socket housing for rear light See 6321055 REPLACING A SOCKET HOUSING FOR LEFT OR RIGHT REAR LIGHT (SIDE PANEL) or 6321057 REPLACING A SOCKET HOUSING FOR LEFT OR RIGHT REAR LIGHT (REAR LID)

Rear light in side panel:

Turn faulty bulb and pull out of socket housing for rear light (5).

NOTE:

Bulb, turn indicator light
Bulb, rear light
Bulb, brake light
Bulb, adaptive brake light

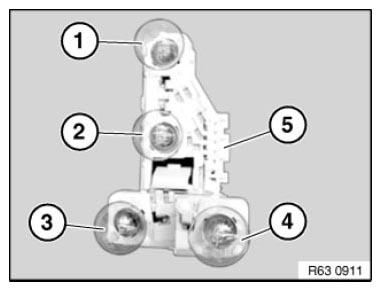

Fig 1: Identifying Bulb, Turn Indicator Light, Brake Light And Adaptive Brake Light

Courtesy of BMW OF NORTH AMERICA, INC.

Rear light in rear lid:

Turn faulty bulb and pull out of socket housing for rear light (4).

NOTE:

Bulb, rear fog light
Bulb, rear light
Bulb, reversing light

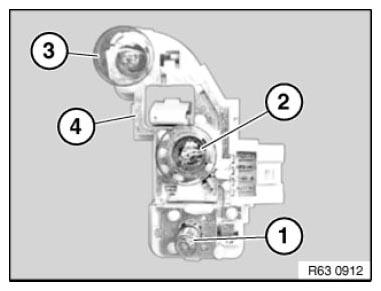

Fig 2: Identifying Bulb, Rear Fog Light, Rear Light And Reversing Light

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Note BULB TYPE .
