63 99 273 Replacing bulb for left (or right) front turn indicator

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Unlock plastic fasteners (1) by turning counterclockwise through 180°.

Feed flap (2) in direction of arrow out of front wheel arch cover (3) and remove.

Fig 1: Feeding Flap Of Front Wheel Arch Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Turn bulb holder (1) approx. 30° counterclockwise.

Feed bulb holder (1) out of headlight (2).

Remove bulb from bulb holder (1).

Installation:

Note BULB TYPE .

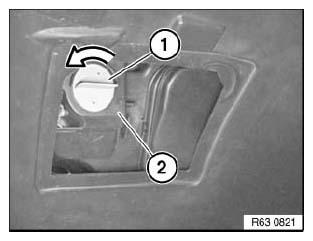

Fig 2: Turning Bulb Holder From Headlight

Courtesy of BMW OF NORTH AMERICA, INC.
