Removal And Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove FRONT LEFT WHEEL ARCH TRIM

Unlock both retaining tabs (2) and remove cover cap (1) from headlight.

Installation:

Make sure cover cap (1) is correctly seated on headlight.

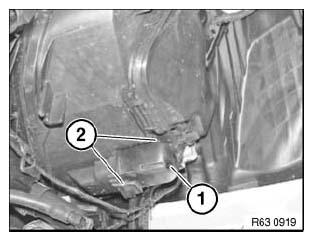

Fig 1: Identifying Cover Cap And Retaining Tabs

G04727714

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (3).

Release screws (1).

Remove lighting unit (2).

Installation:

Make sure lighting unit (2) is exactly seated in headlight
Note BULB TYPE .

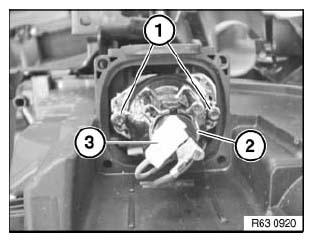

Fig 2: Identifying Plug Connection, Screws And Lighting Unit

G04727715

Courtesy of BMW OF NORTH AMERICA, INC.

From series status 3/2008:

Turn cover cap (1) in direction of arrow and remove from headlight (2).

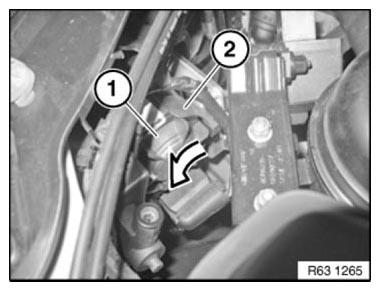

Fig 3: Turning Cover Cap And Headlight

G06851857

Courtesy of BMW OF NORTH AMERICA, INC.

Turn bulb (1) in direction of arrow and pull out of headlight (2).

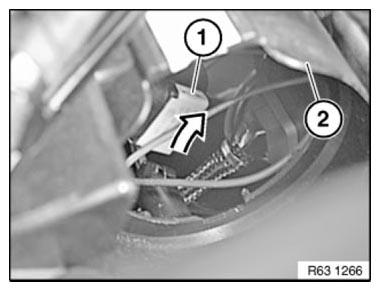

Fig 4: Turning Bulb From Headlight

G06851858

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Remove bulb (2).

Installation:

Make sure bulb (2) is exactly seated in headlight.
Note BULB TYPE

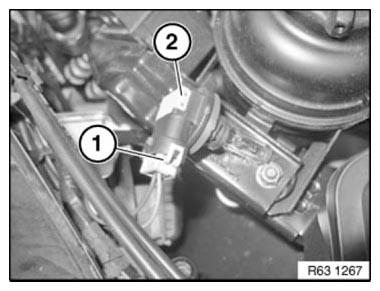

Fig 5: Identifying Plug Connection And Bulb

G06851859

Courtesy of BMW OF NORTH AMERICA, INC.
