63 99 132 Replacing bulb for front left (or right) side lights

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Necessary preliminary tasks:

Remove FRONT LEFT WHEEL ARCH COVER

NOTE: Headlight removed for purposes of clarity.

Unlock retainer (1) and remove cover (2) in direction of arrow from headlight.

Installation:

Make sure cover (2) is correctly seated on headlight.

Fig 1: Removing Headlight Cover With Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Release screws (2).

Unlock retainers (3) at top/bottom in direction of arrow.

Remove socket housing (4) from headlight.

Installation:

Make sure socket housing (4) is exactly seated in headlight.
Lock retainers (3).
Note BULB TYPE

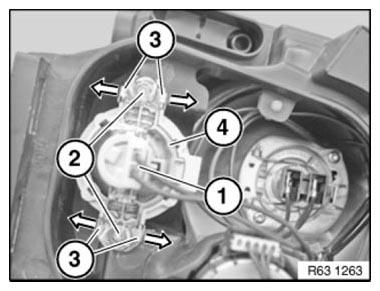

Fig 2: Identifying Plug Connection, Screws, Socket Housing And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.
