63 99 072 Replacing halogen bulb for left (or right) headlight

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

NOTE: Headlight removed for purposes of clarity.

Unlock retaining clip (1) and remove protective cap (2) in direction of arrow from headlight.

Installation note:

Protective cap (2) must be correctly engaged.

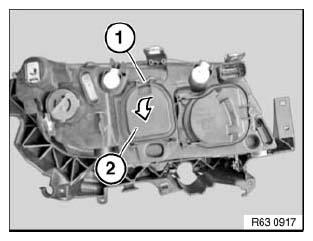

Fig 1: Removing Protective Cap With Retainer Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Check seal.

Replace protective cap (2) if necessary.

Comply with INSTRUCTIONS FOR REPLACING THE PROTECTIVE CAP .

Disconnect plug connection (3).

Unlock retainer (2) in direction of arrow and fold upwards.

Remove bulb (1) from headlight.

Installation note:

Make sure bulb (1) is exactly seated in headlight.
Note BULB TYPE

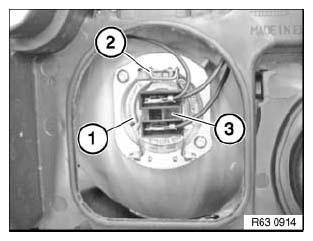

Fig 2: Identifying Plug Connection, Retainer And Bulb

Courtesy of BMW OF NORTH AMERICA, INC.
