63 99 002 Replacing halogen bulb for left (or right) high-beam headlight

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

NOTE: Headlight removed for purposes of clarity.

Unlock retainer (1) and remove cover (2) in direction of arrow from headlight.

Installation note:

Cover (2) must be correctly engaged.

Check seal.

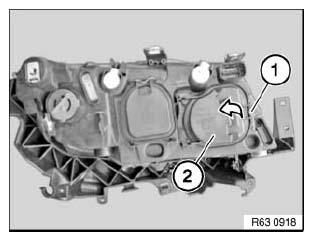

Fig 1: Removing Headlight Cover With Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

Replace cover (2), if necessary.

Comply with INSTRUCTIONS FOR REPLACING THE COVER .

Disconnect plug connection (3).

Unlock retainer (2) in direction of arrow and fold upwards.

Remove bulb (1) from headlight.

Installation note:

Make sure bulb (1) is exactly seated in headlight.
Note BULB TYPE .

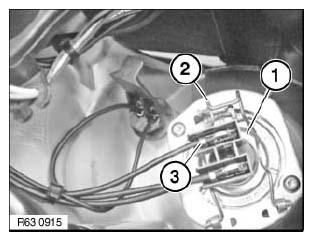

Fig 2: Identifying Plug Connection, Retainer And Bulb

Courtesy of BMW OF NORTH AMERICA, INC.
