Removal And Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

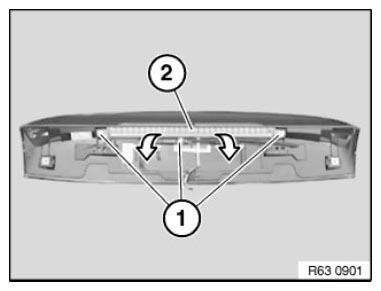

Release screws (1).

Remove auxiliary stop lamp (2) in direction of arrow from rear spoiler.

Fig 1: Removing Auxiliary Stop Lamp From Rear Spoiler
G06980070Courtesy of BMW OF NORTH AMERICA, INC.

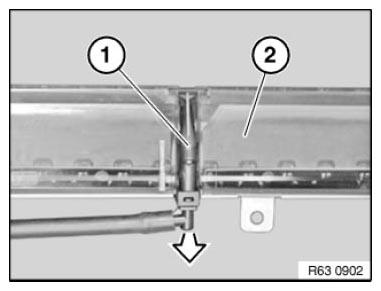

Remove spray nozzle (1) from rear spoiler (2) in direction of arrow.

Fig 2: Removing Spray Nozzle From Rear Spoiler
G06980071Courtesy of BMW OF NORTH AMERICA, INC.
