63 21 183 Removing and installing/replacing left or right tail light (on rear lid)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Release catch (1) and fold insert (2) downwards.

Fig 1: Releasing Catch And Fold Insert Downwards

G06980059

Courtesy of BMW OF NORTH AMERICA, INC.

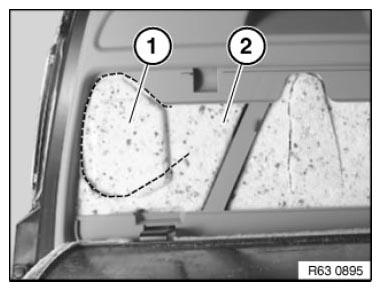

Open cutout (1) of insulating mat (2).

Fig 2: Identifying Cutout Area Of Insulating Mat

G06980060

Courtesy of BMW OF NORTH AMERICA, INC.

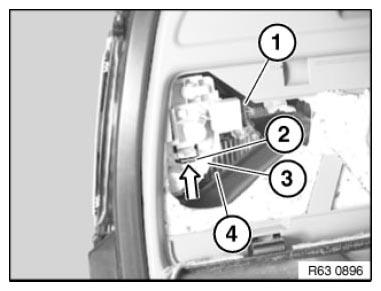

Disconnect plug connection (1).

Unlock locking clip (2) in direction of arrow and remove socket housing (3) from rear light (4).

Fig 3: Removing Socket Housing From Rear Light And Locking Clip

G06980061

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1) until clamping jaw (2) on rear lid (3) can be unlatched.

Tightening torque 63 21 1AZ .

Fold rear light (4) outwards out of rear lid (3) and remove.

Installation:

Make sure clamping jaw (2) is correctly seated on rear lid (3).

Position lugs (5) of rear light (4) exactly over side edge of rear lid (3).

Fig 4: Identifying Slacken Nut, Clamping Jaw And Rear Lid

G04727741

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

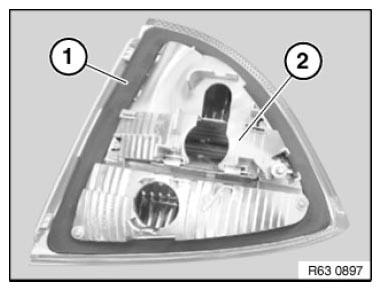

Make sure seal (1) is correctly seated on rear light (2).

Fig 5: Identifying Seal On Rear Light

G06980063

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, remove BULBS .
