63 12... Installing additional bracket for left or right xenon headlight

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

An additional bracket is installed on some models as standard to protect the xenon headlights against vibrations.

It is installed on vehicles without a standard additional bracket in the event of a customer complaint that the "xenon headlight is vibrating".

Necessary preliminary tasks:

Remove REMOVE FRONT BUMPER PANEL .

Slacken nuts (1).

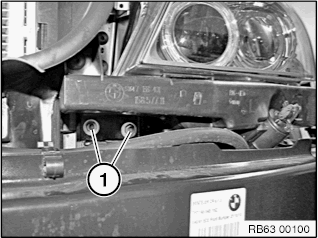

Fig 1: Identifying Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation sequence:

Install additional bracket (2) as shown.
Tighten nut (1) handtight.
Screw on additional bracket (2) with holder (4).
Tightening torque: 63 12 2AZ
Tighten nut (1).
Tightening torque: 63 12 1AZ

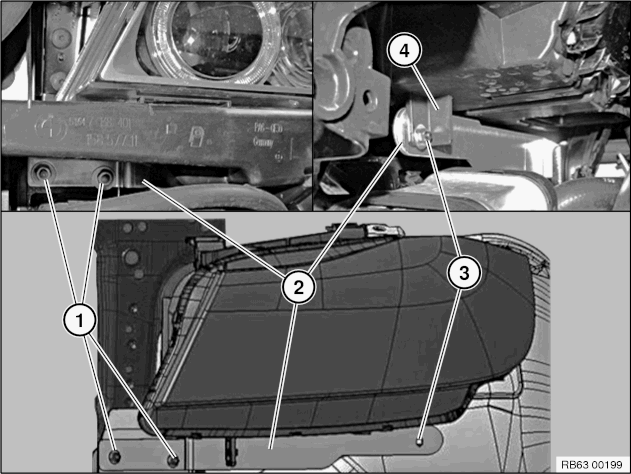

Fig 2: Identifying Holder, Bracket, And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
