63 12 895 Replacing drive/electronics box for left adaptive headlight (up to 09/2008)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Version with xenon headlights: Danger to life due to high voltage! Therefore, before removing, disconnect all components from the power supply (lighting system and ignition off).
Work on the entire xenon lighting system (ignition unit, control unit and lamp) may only be carried out by specialist personnel.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks:

Remove FRONT LEFT WHEEL ARCH COVER

Release bolts (1). Tightening torque 63 12 5AZ .

Remove drive for adaptive headlight (2) in direction of arrow from headlight (3).

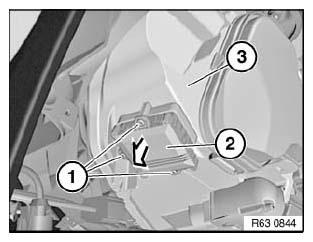

Fig 1: Identifying Bolts, Headlight And Adaptive Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit drive for adaptive headlight (1) exactly on headlight.

Make sure pin housing (2) is correctly seated in plug housing (3).

Fig 2: Identifying Adaptive Headlight, Pin Housing And Plug Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Carry out vehicle programming/coding.
