63 10 004 Adjusting headlights
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Comply with TEST PRECONDITIONS FOR HEADLIGHT ADJUSTMENT .

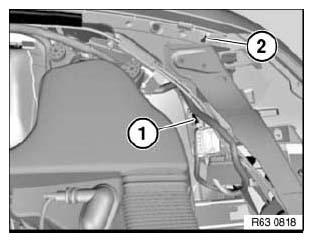

Adjust headlights at adjusting screws (1) and (2).
A definite allocation of adjusting screws is not possible.
- Adjustment screw primarily for vertical adjustment
- Adjustment screw primarily for lateral adjustment
