Special tools required:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

For identification of special tools, refer to ENGINE- SPECIAL TOOLS .

(clutch removed)

Lock flywheel with special tool 11 2 170.

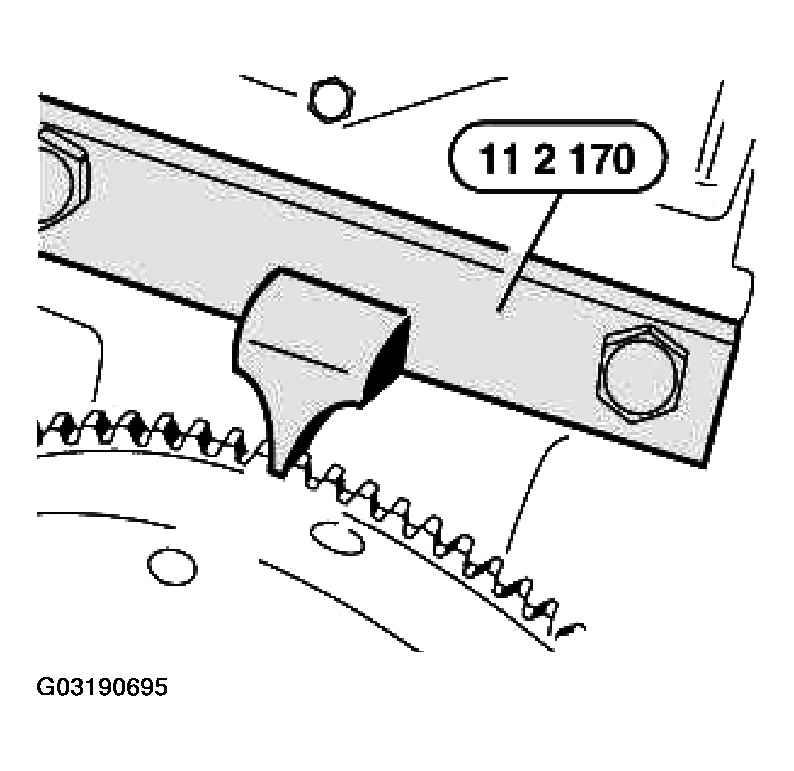

Fig 1: Locking Flywheel
G03190695Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and remove flywheel.

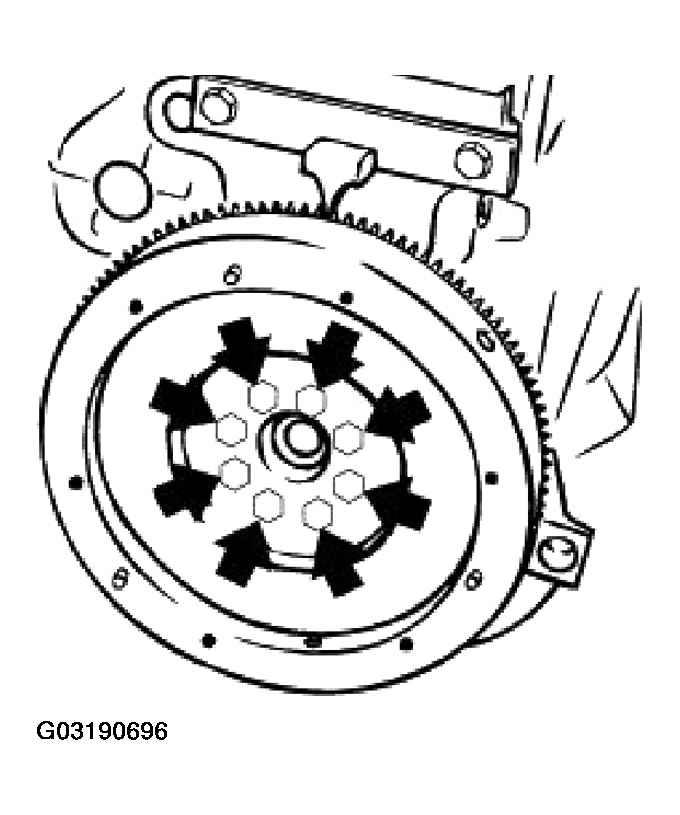

Fig 2: Removing Flywheel
G03190696Courtesy of BMW OF NORTH AMERICA, INC.
