Special tools required:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

11 4 390
13 3 061
13 3 063

For identification of special tools, refer to ENGINE- SPECIAL TOOLS .

NOTE: When the main flow oil-filter cover is released, the oil flows from the oil-filter housing back into the sump.

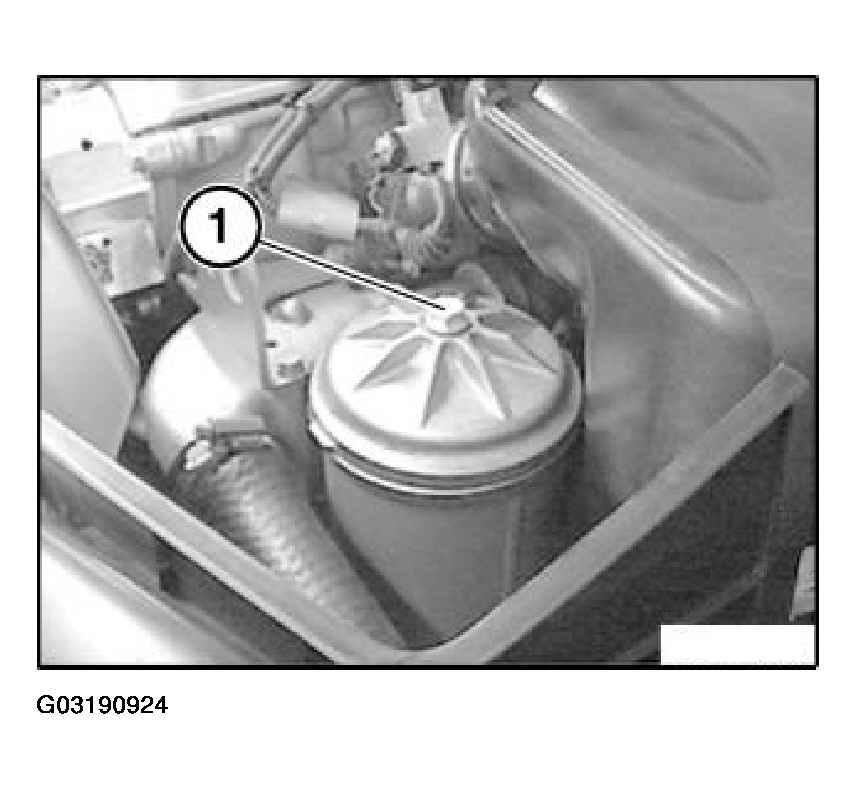

Unfasten oil filter cover.

Fig 1: Unfastening Oil Filter Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing ring.

Tightening torque 11 42 2AZ. Refer to 11 42 OIL FILTER AND PIPES .

Installation:

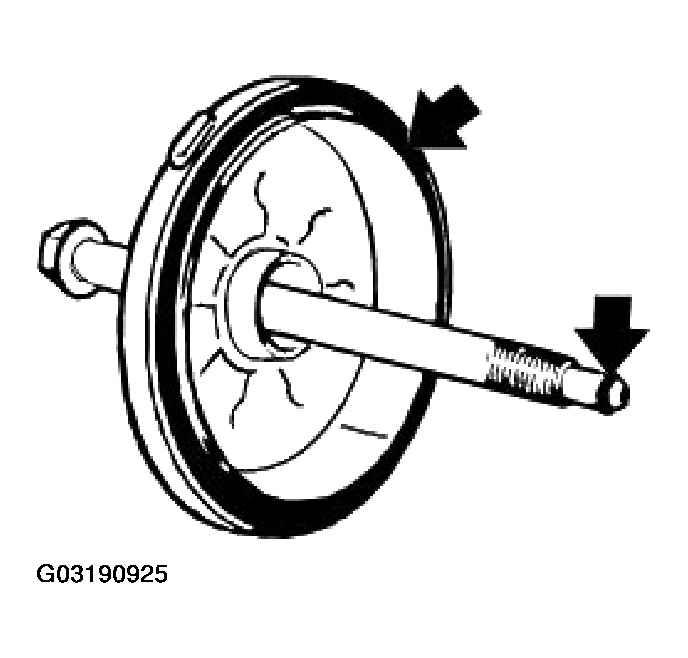

Replace sealing ring in oil-filter cover and sealing ring on bolt.

Fig 2: Replacing Sealing Rings

Courtesy of BMW OF NORTH AMERICA, INC.

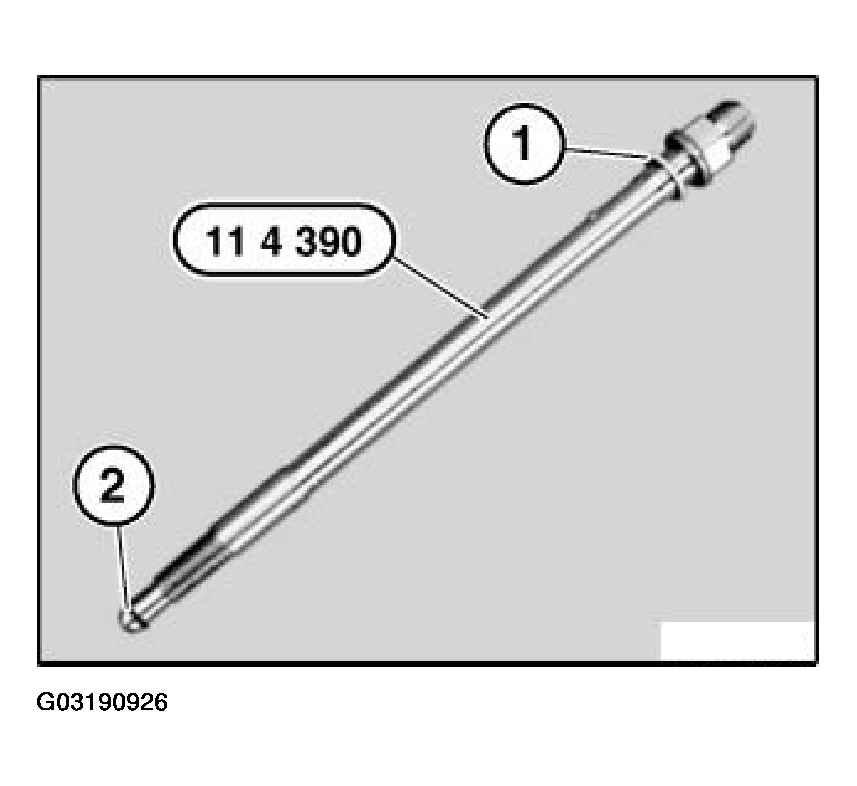

Check sealing rings (1 and 2) on special tool 11 4 390, replace if necessary.

Fig 3: Checking Sealing Rings On Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

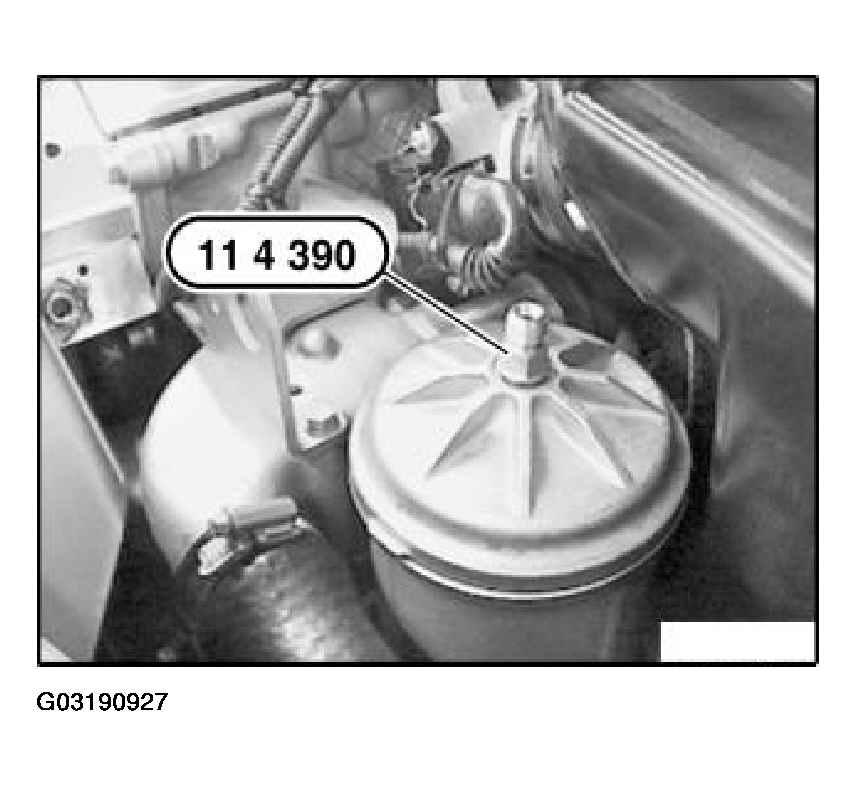

Insert special tool 11 4 390 and tighten down oil filter cover.

Fig 4: Inserting Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

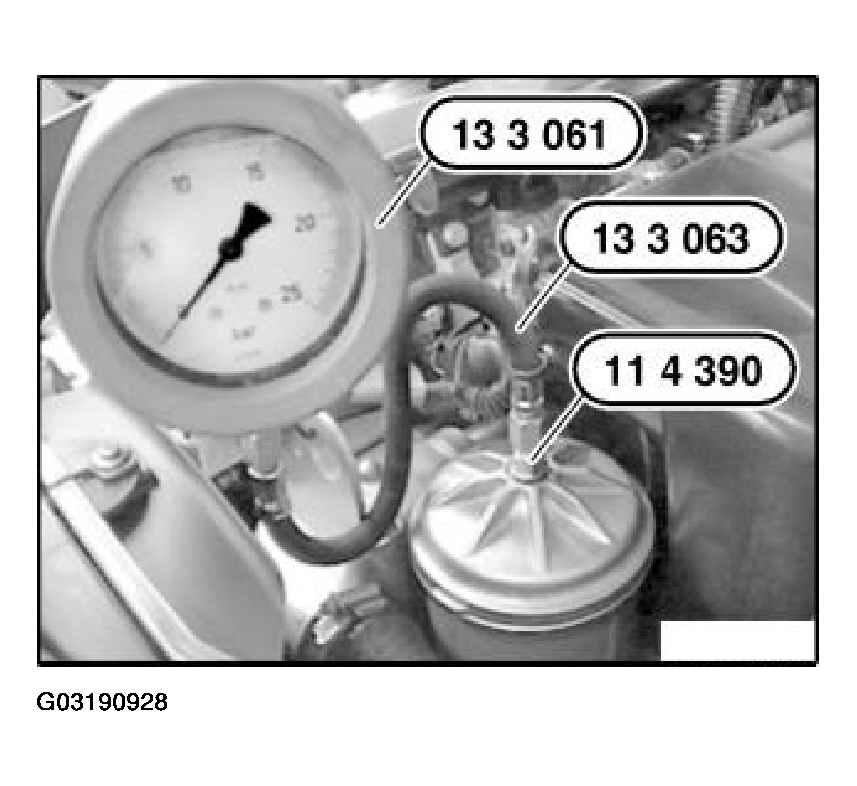

Connect special tools 13 3 061 / 13 3 063.

Start engine and check engine oil pressure.

Fig 5: Checking Oil Pressure

Courtesy of BMW OF NORTH AMERICA, INC.
