11 14 141 Replacing radial seal in lower timing case cover(S50 / S54): Removal:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

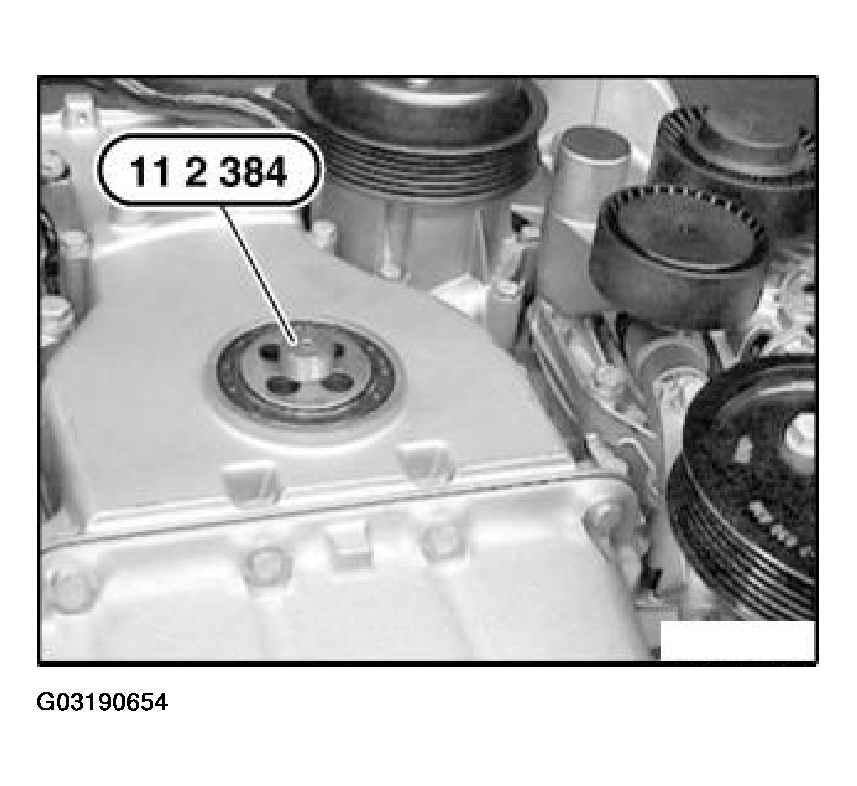

Fit special tool 11 2 384 on crankshaft.

Fig 1: Fitting Special Tool On Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

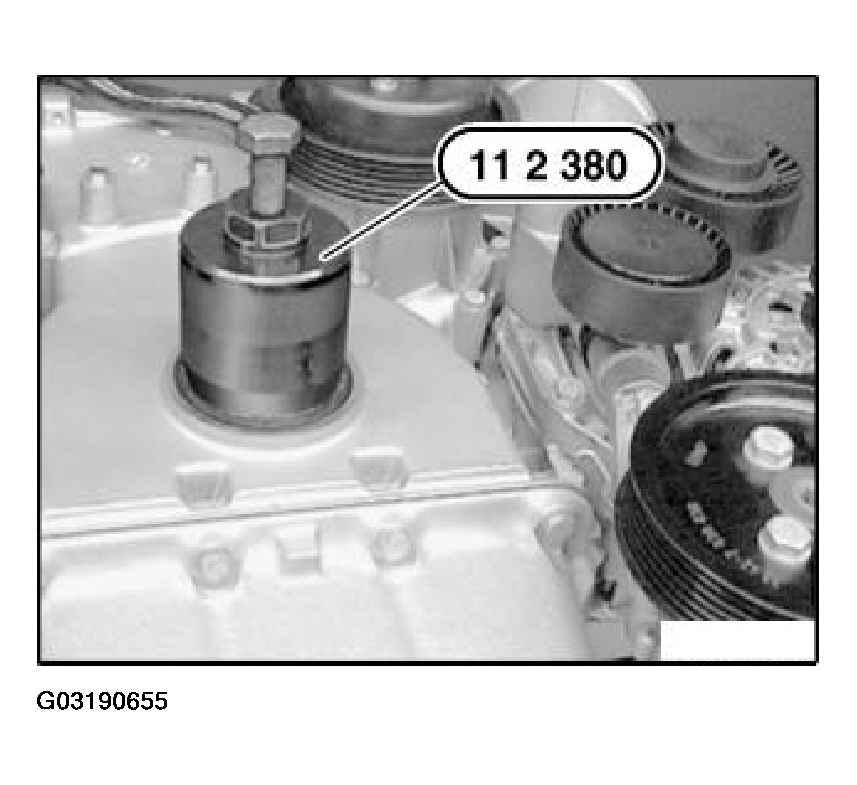

Screw in special tool 11 2 380 until it is firmly connected to the radial seal.

Remove radial seal by tightening in the screw.

Fig 2: Removing Radial Seal

Courtesy of BMW OF NORTH AMERICA, INC.
