Special tools required:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

11 2 300
11 5 100
11 7 160
11 7 200
11 7 342
11 9 130
11 9 140
11 9 170
12 6 050
12 6 410
12 6 411
For identification of special tools, refer to ENGINE- SPECIAL TOOLS .

When the engine is switched off, VANOS moves the camshafts to a position which is advantageous to engine starting.

CAUTION: The timing must "not" be adjusted in this position.
The camshafts must be rotated back to their initial position beforehand and the timing checked.

Check camshaft timing. Refer to 11 31 005 CHECKING CAMSHAFT TIMING (S54) .

If the timing check reveals an impermissible deviation, the VANOS adjustment unit must be removed and the camshaft timing readjusted.

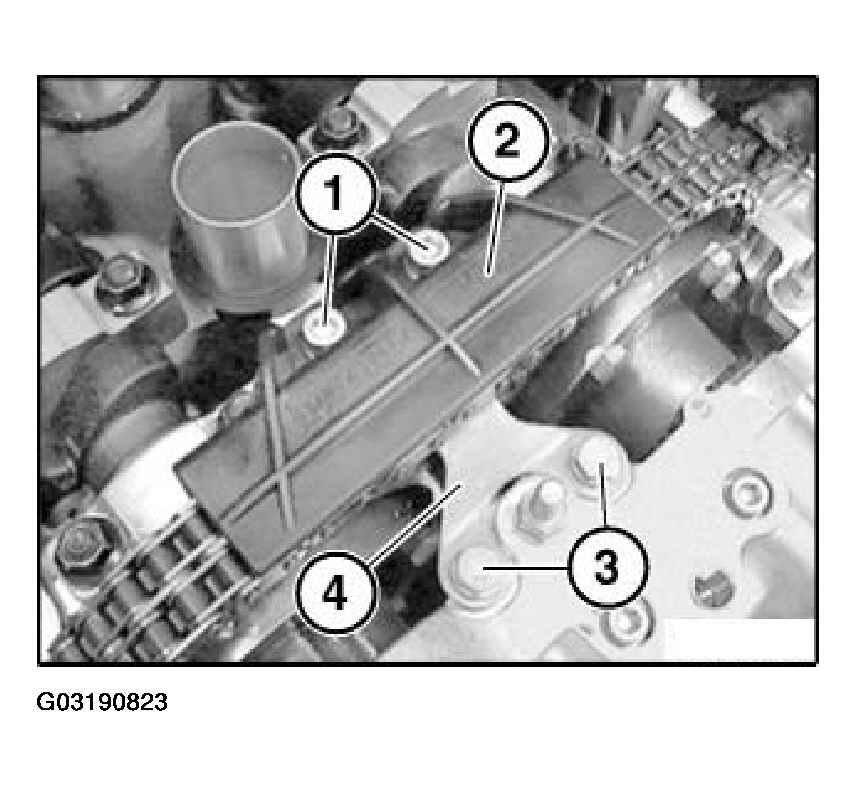

Release screws (1).
Remove sliding rail (2).
Release screws (3).
Remove holder (4).

Fig 1: Removing Sliding Rail And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

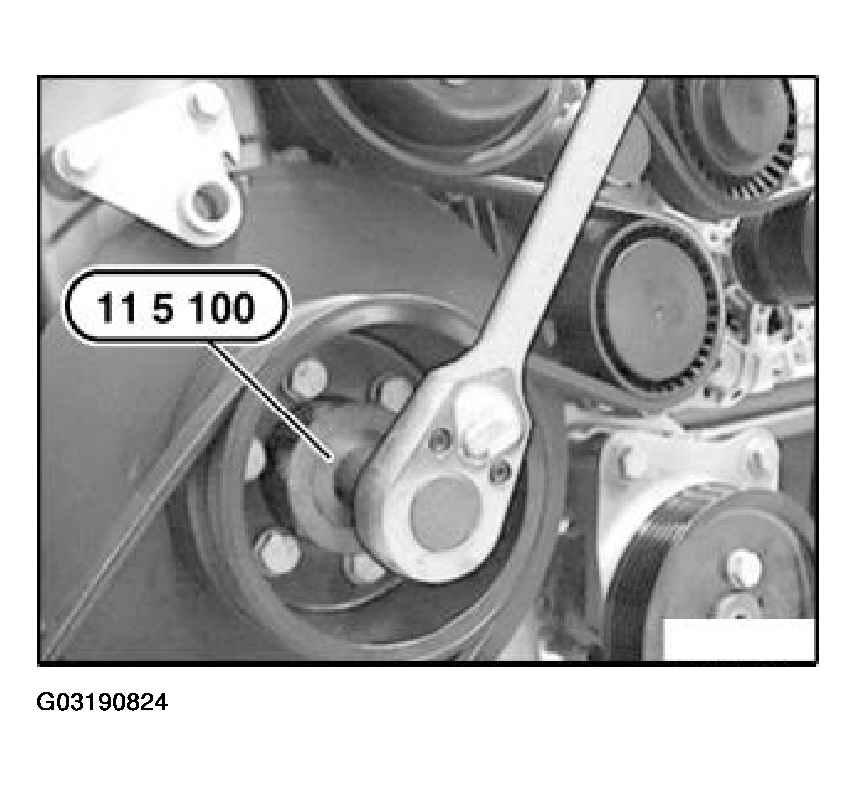

Attach special tool 11 5 100 to four screws of crankshaft hub.

Fig 2: Attaching Special Tool To Crankshaft Hub

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 2 300. Rotate crankshaft in direction of rotation a further revolution up to overlap TDC position.

NOTE: TDC allocation above marking on vibration damper is sufficient.

Fig 3: Rotating Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

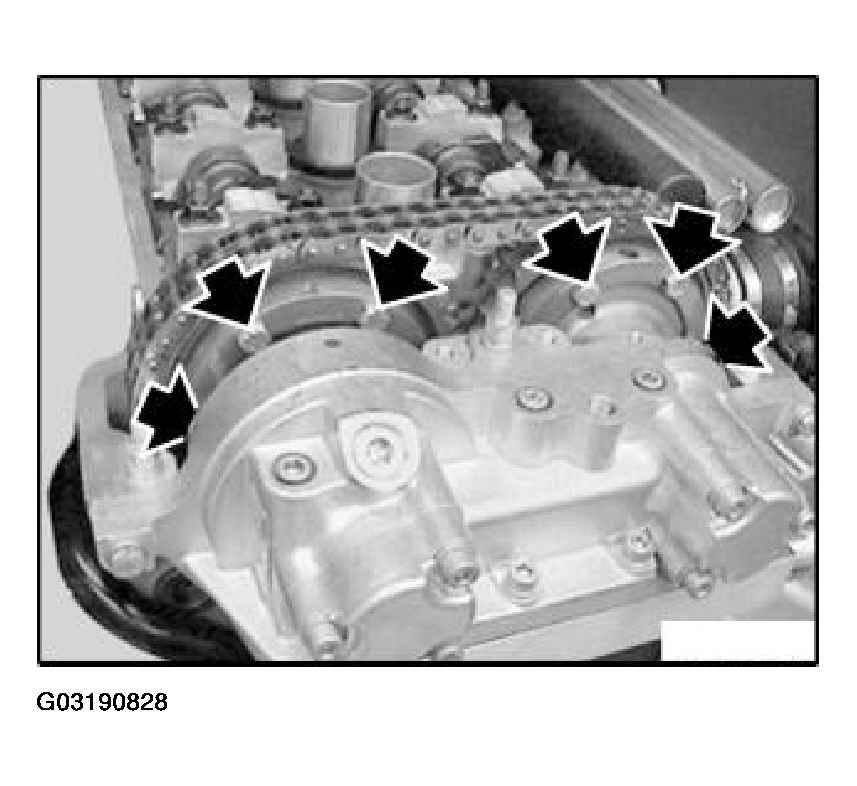

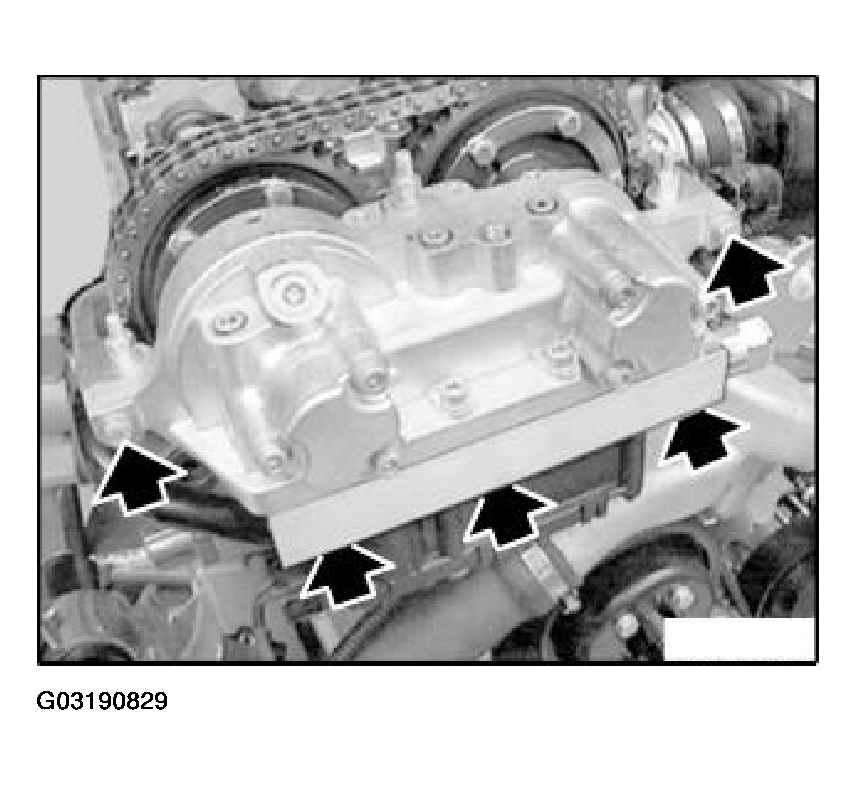

Slacken six accessible bolts two turns.

Fig 4: Locating Accessible Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

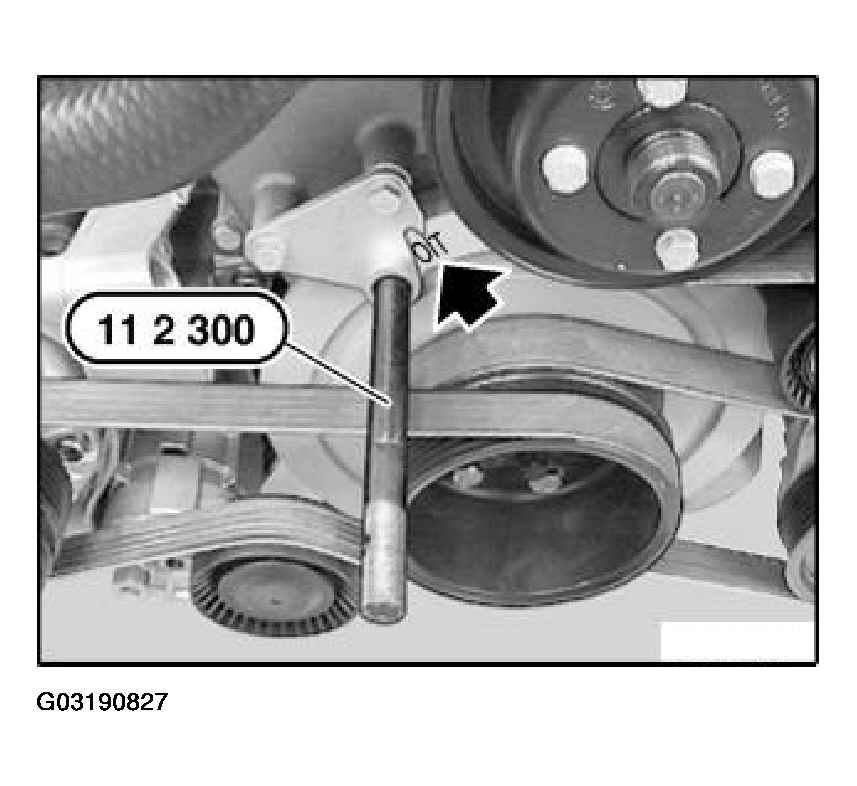

Crank engine at central bolt in direction of rotation until 1st cylinder is at TDC firing position. Secure vibration damper in position with special tool 11 2 300.

Fig 5: Securing Vibration Damper In Position

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken remaining six bolts two turns.

Fig 6: Slackening Remaining Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws on VANOS adjustment unit.

Fig 7: Releasing Screws On VANOS Adjustment Unit

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not damage VANOS adjustment unit.

Carefully detach VANOS adjustment unit.

Fig 8: Detaching VANOS Adjustment Unit

Courtesy of BMW OF NORTH AMERICA, INC.

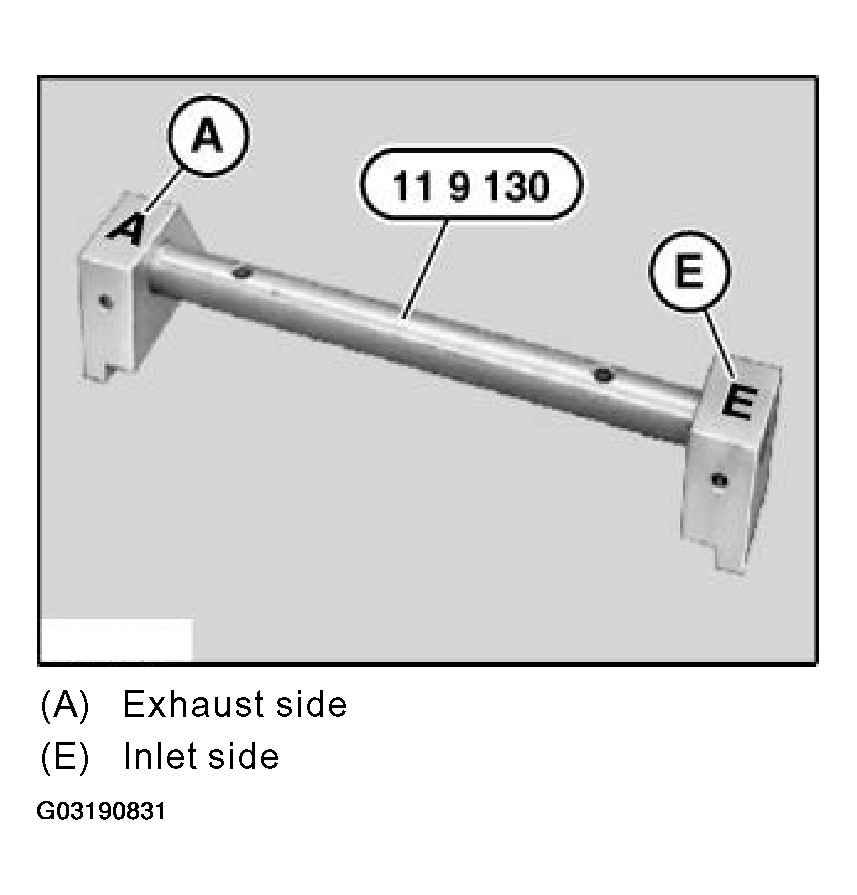

CAUTION: Pay attention to installation direction of special tool 11 9 130.

(A) Exhaust side

(E) Inlet side

Fig 9: Identifying Installation Direction Of Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

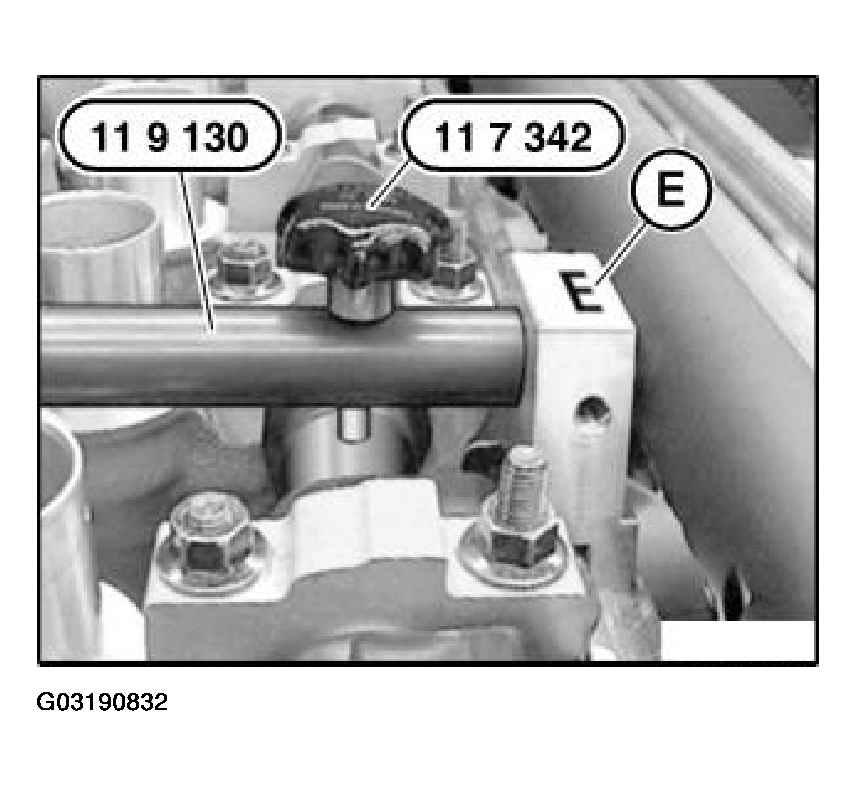

Inlet side:

CAUTION: Pay attention to installation direction of special tool 11 9 130.

Attach special tool 11 9 130 to cylinder head. Align inlet camshaft at hexagon until special tool 11 7 342 can be joined by means of special tool 11 9 130 in locating bore.

Special tool 11 9 130 must rest flat on cylinder head. Remove special tool 11 7 342.

Fig 10: Aligning Inlet Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

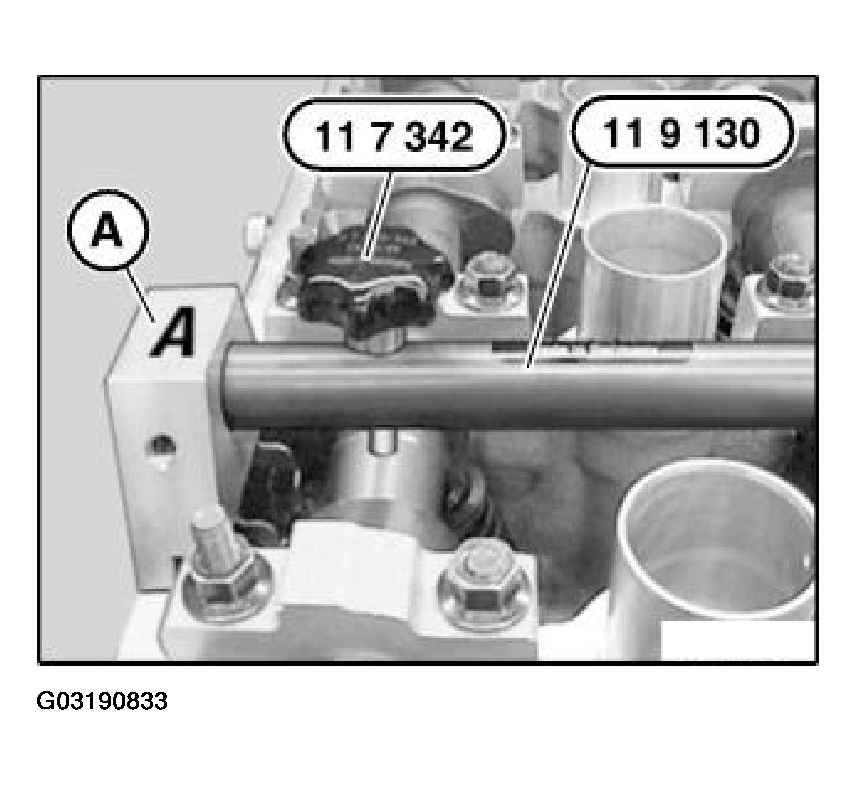

Exhaust side:

Align exhaust camshaft at hexagon until special tool 11 7 342 can be joined by means of special tool 11 9 130 in locating bore.

Special tool 11 9 130 must rest flat on cylinder head.

Remove special tool 11 9 130 and special tool 11 7 342.

Fig 11: Aligning Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

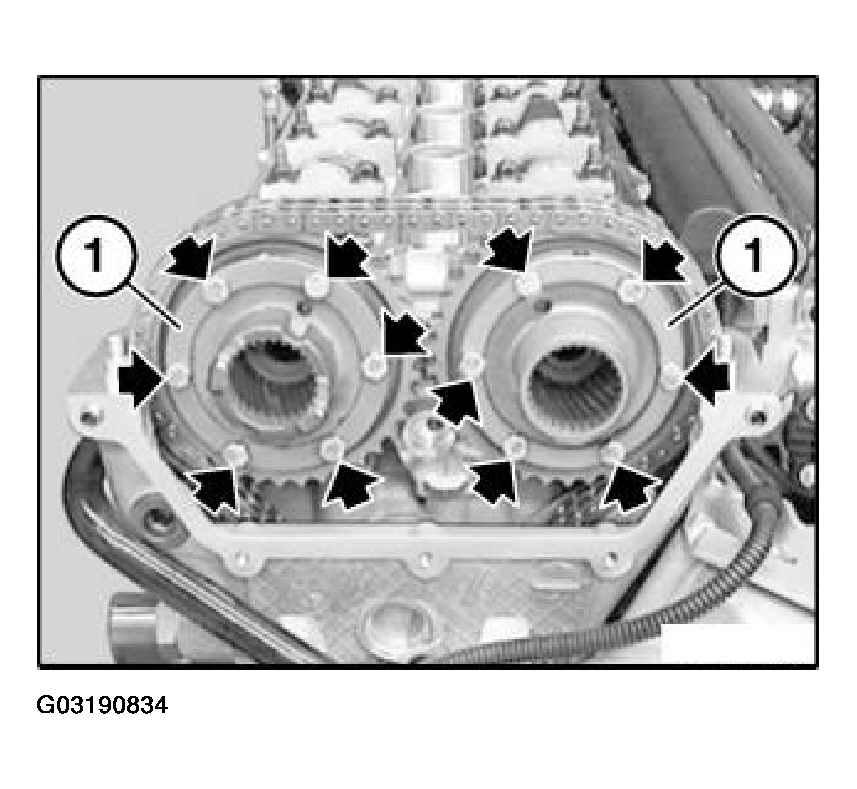

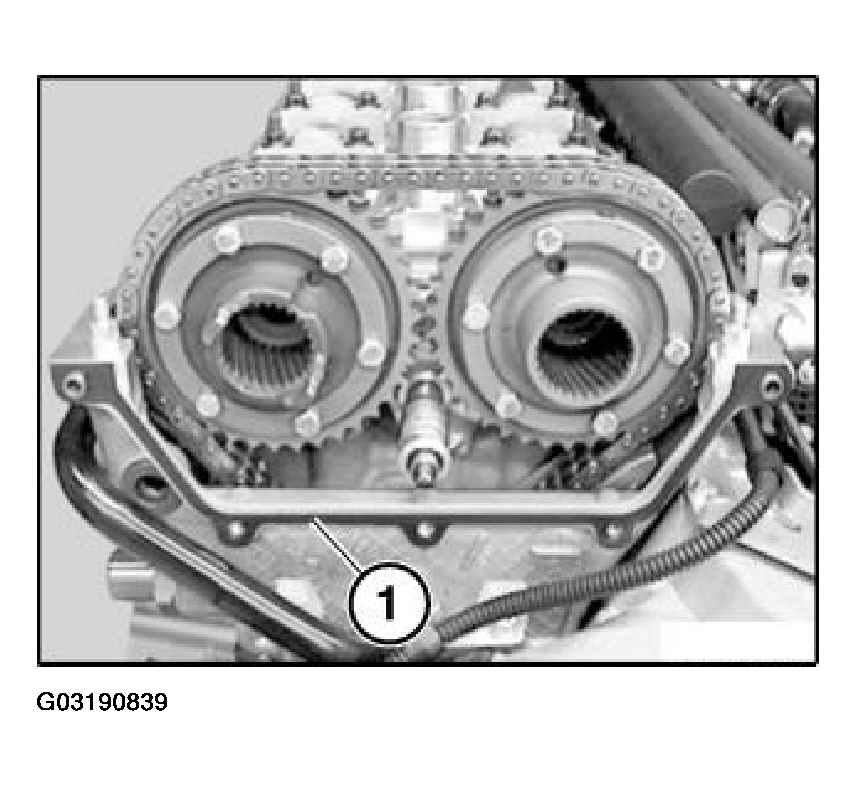

Tighten all screws of spline hub (1) on inlet and outlet sides by hand until free from play.

Then slacken screws again until spline hubs (1) can be moved with fingers.

Fig 12: Locating Screws Of Spline Hubs

Courtesy of BMW OF NORTH AMERICA, INC.

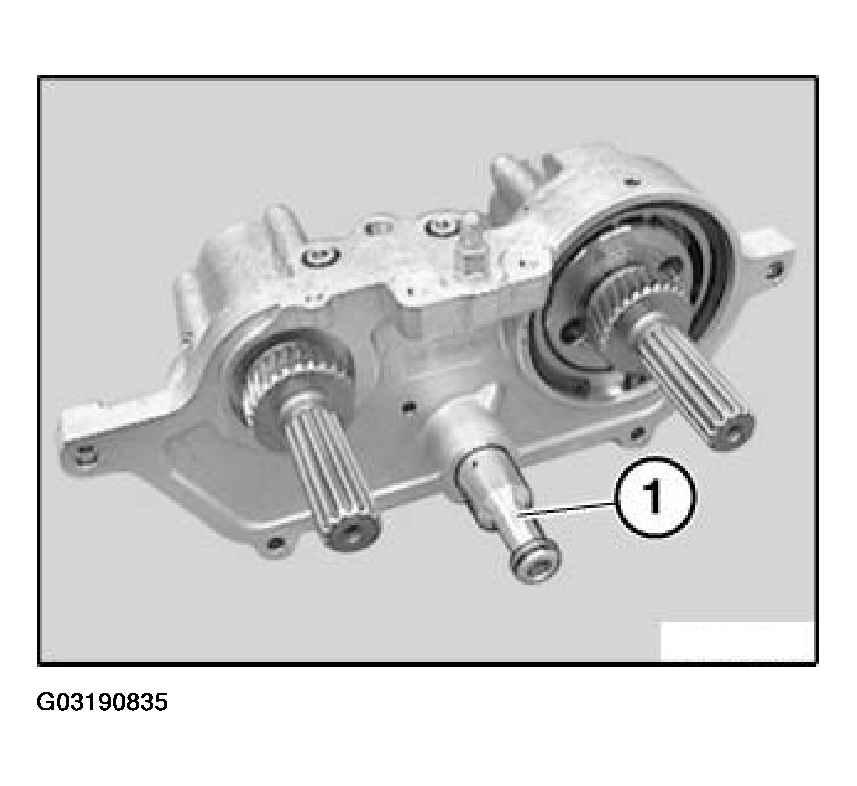

Detach control valve (1) from VANOS adjustment unit.

Fig 13: Detaching Control Valve From VANOS Adjustment Unit

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: A filter is integrated in the control valve.
In the event of engine damage which suggests that the filter is contaminated with swarf/chips, it is essential to replace the control valve.

Replace sealing rings (1) and coat with oil as antiseize agent.

Fig 14: Replacing Sealing Rings

Courtesy of BMW OF NORTH AMERICA, INC.

Preassemble control valve in cylinder head.

Oil is sprayed when splined shafts are pressed back. Cover bore (1) with a cloth.

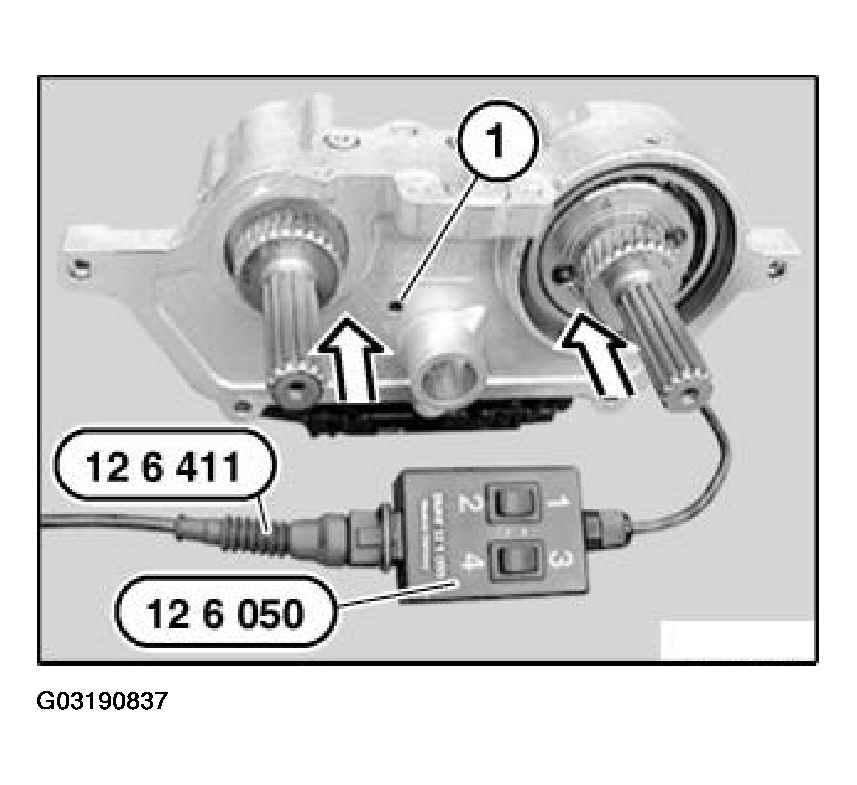

Connect special tool 12 6 050 in conjunction with special tool 12 6 411 (from special tool kit 12 6 410) to solenoid valves of VANOS adjustment unit. Connect special tool 12 6 411 to correct terminals on car battery.

Fig 15: Connecting Special Tool To Solenoid Valves

Courtesy of BMW OF NORTH AMERICA, INC.

Press buttons 1 and 3 on special tool 12 6 050 simultaneously.

Solenoid valves are actuated.

Press splined shafts by hand up to stop into initial position.

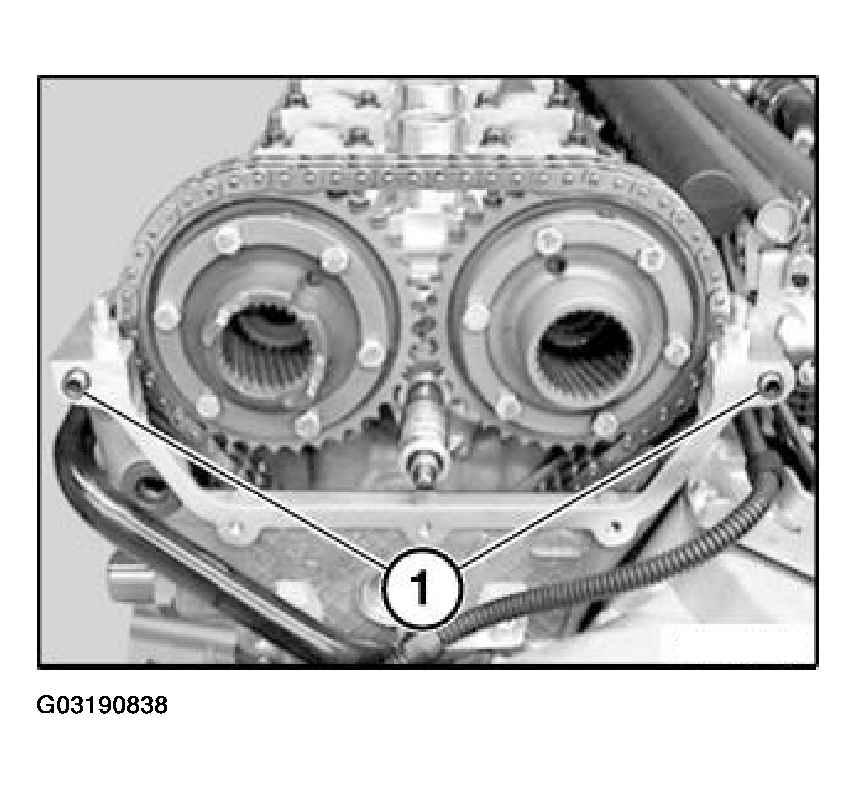

Check adapter sleeves (1) for damage and correct installation position.

Fig 16: Checking Adapter Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

Replace gasket (1).

CAUTION: Note direction of installation of gasket.
Install gasket (1) in such a way that beading points to VANOS adjustment unit.
Secure gasket (1) with sealing compound on adapter sleeves.

Fig 17: Locating Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

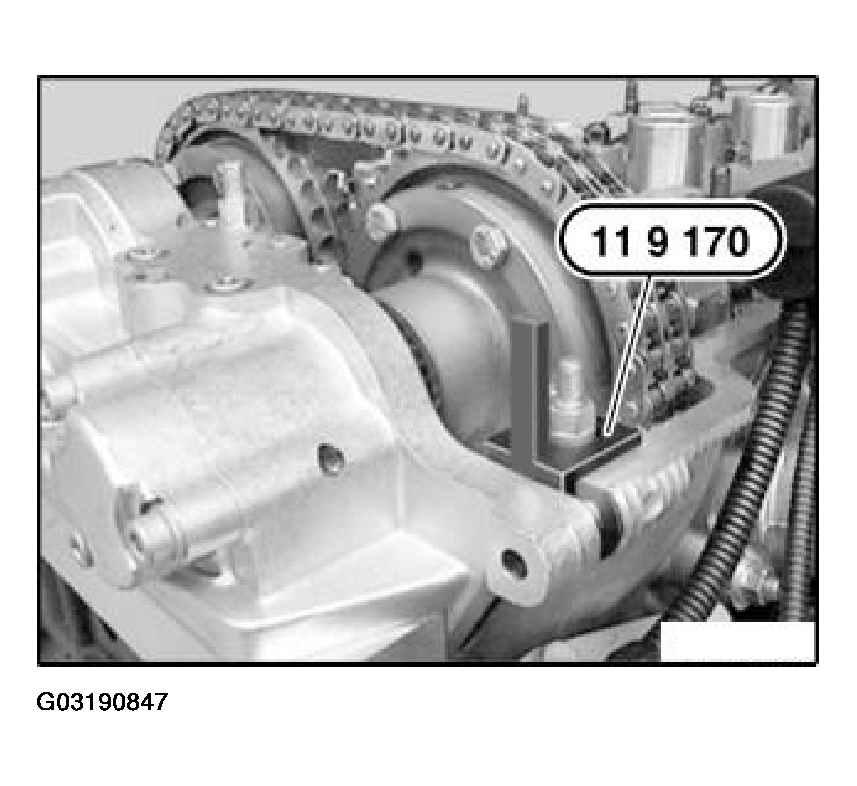

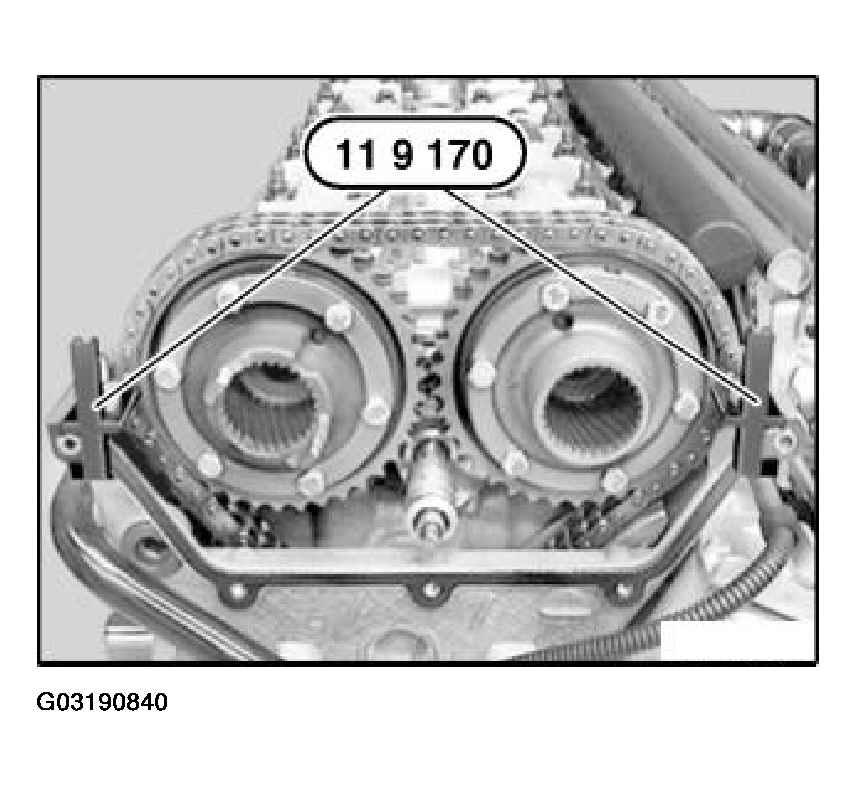

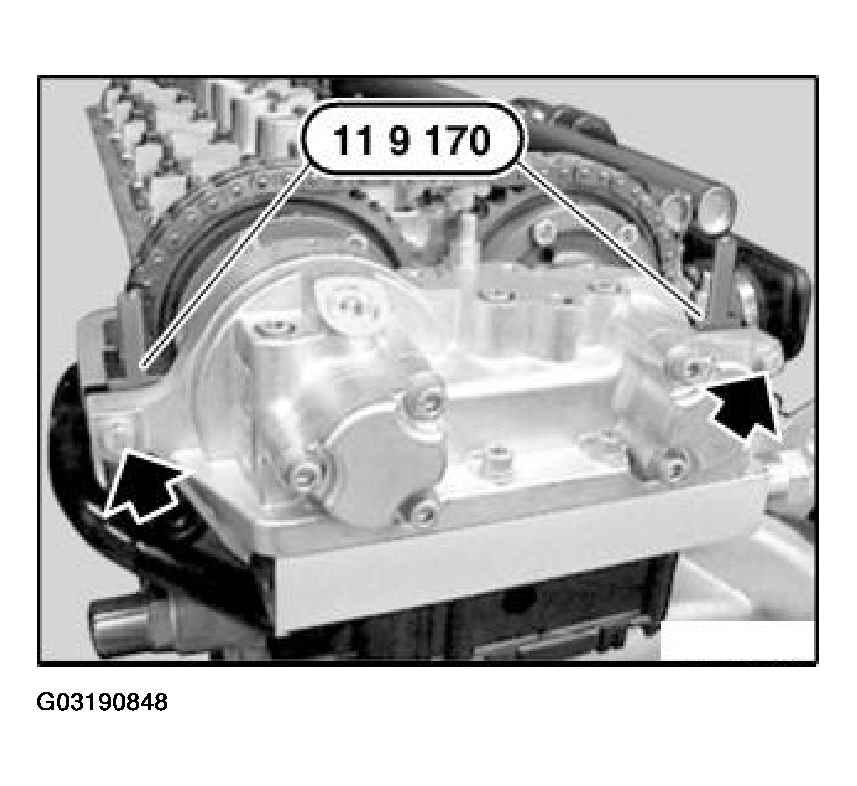

Secure special tool 11 9 170 - as shown in illustration - by means of stud bolt.

Fig 18: Securing Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The special tool 11 9 170 serves to maintain a prespecified distance during the below-mentioned installation of the VANOS adjustment unit.

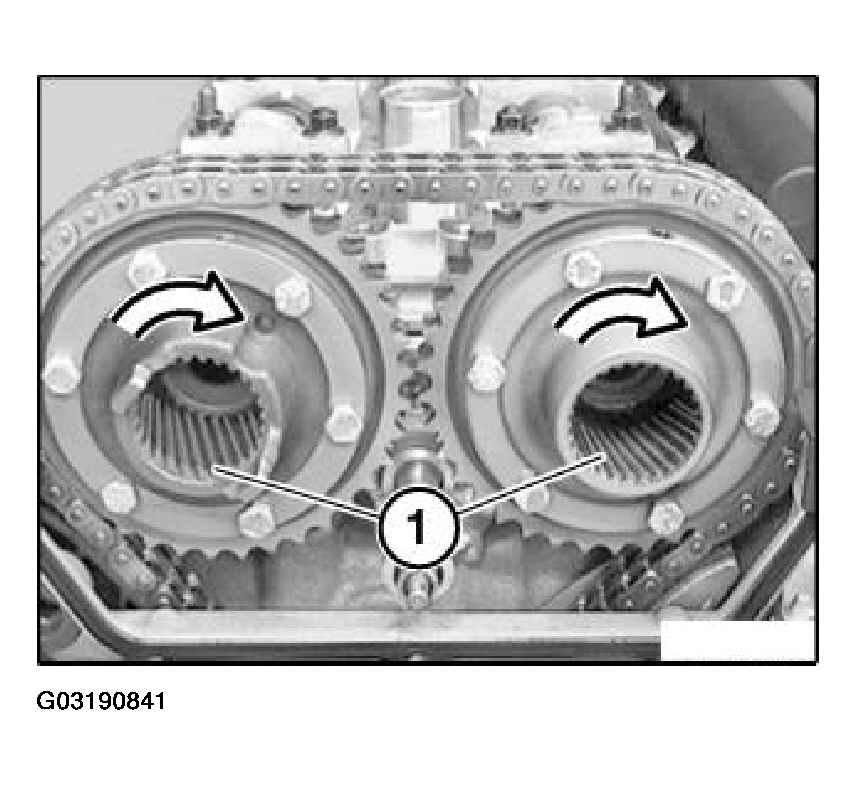

Turn spline hubs (1) of inlet and exhaust camshafts to right limit position.

Fig 19: Turning Spline Hubs

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Special tool 11 9 170 remains as a spacer element between cylinder head and VANOS adjustment unit.

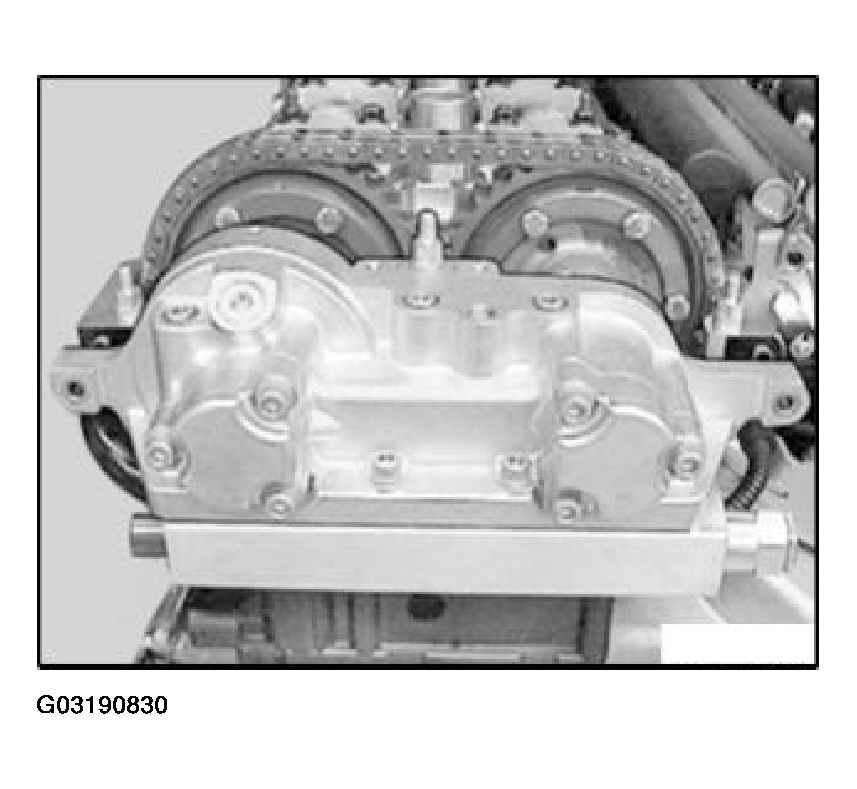

Attach VANOS adjustment unit.

Fig 20: Attaching VANOS Adjustment Unit

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Make sure both VANOS splined shafts remain in initial position during installation.

Rotate splined shafts of inlet and exhaust sides until spur toothing is engaged.

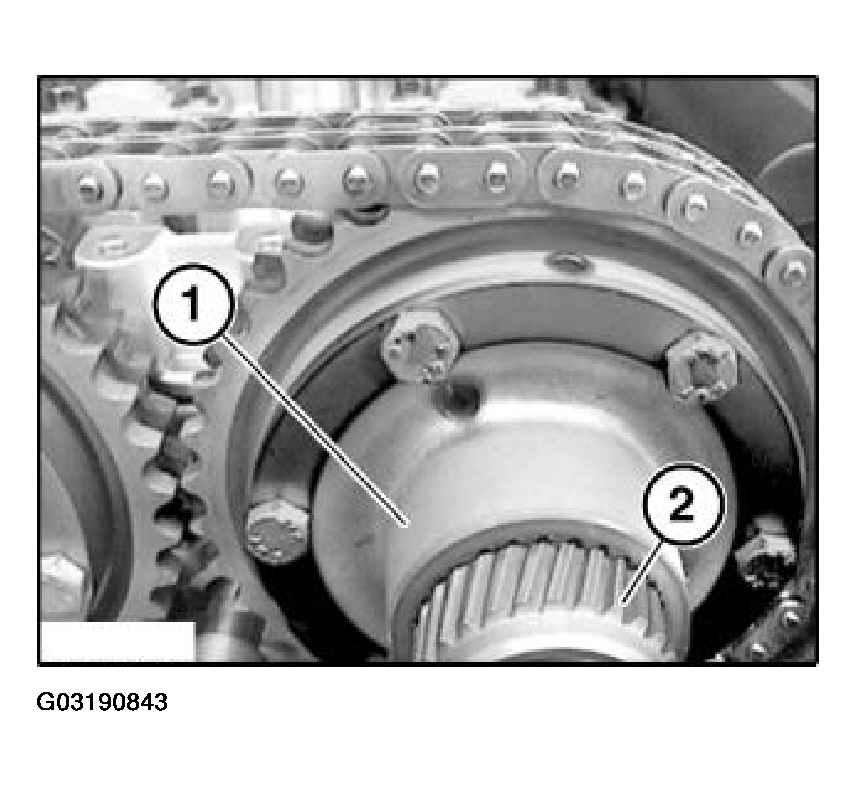

Push VANOS adjustment unit with splined shaft into VANOS gear until helical cut splines (2) are positioned shortly before meshing with spline hub (1).

Fig 21: Identifying Helical Cut Splines And Spline Hub

Courtesy of BMW OF NORTH AMERICA, INC.

Exhaust side:

If the helical cut splines cannot be pushed into the spline hub (1):

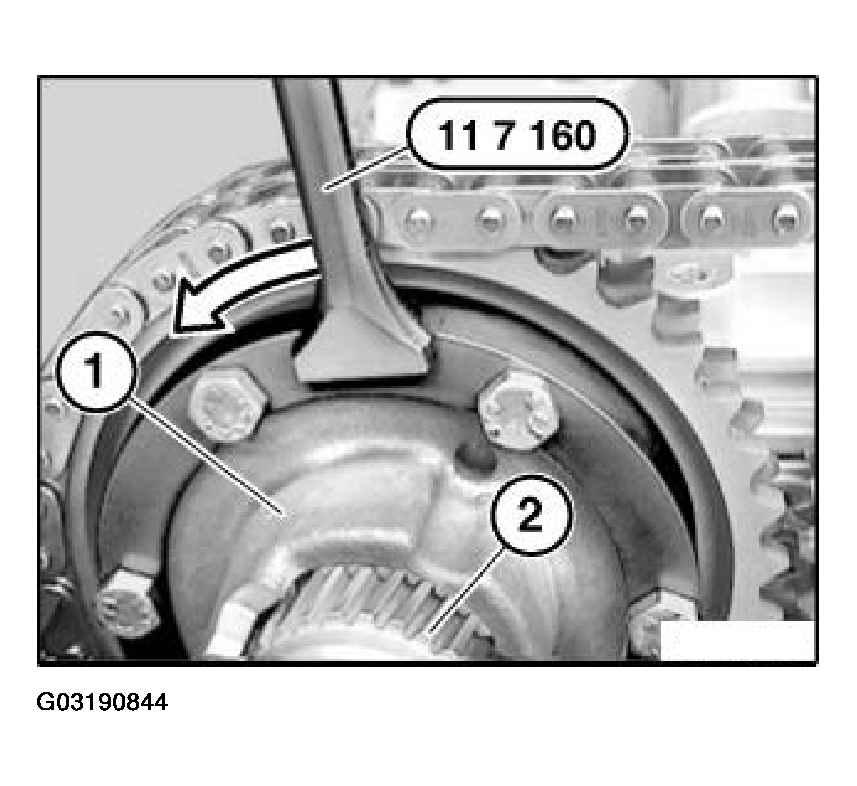

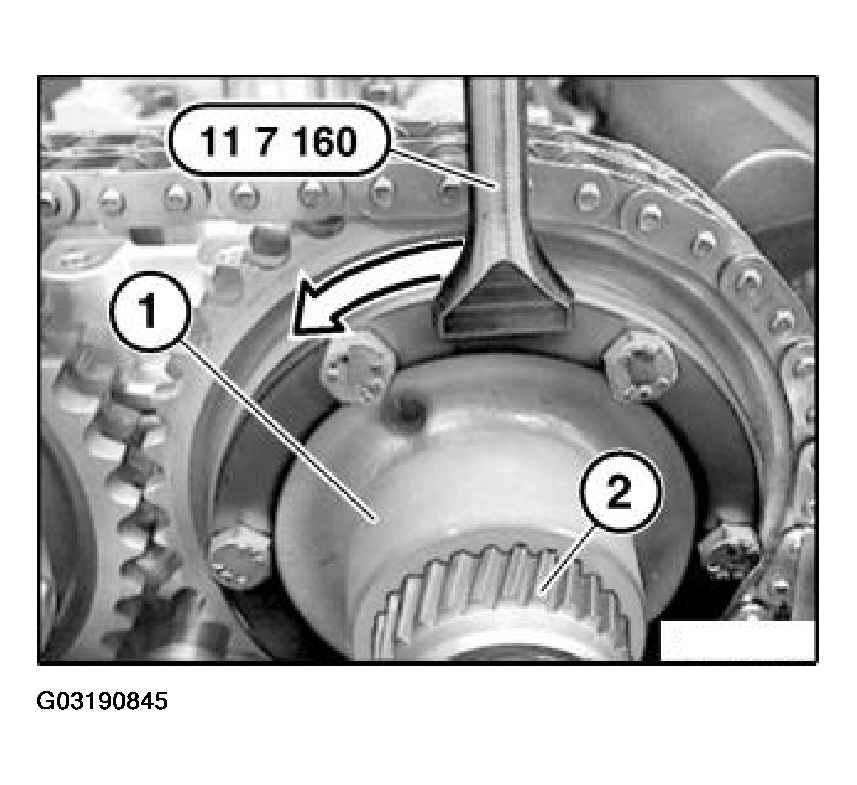

Place special tool 11 7 160 on bore in spline hub (1). Rotate spline hub (1) against direction of rotation until splined shaft (2) is positioned with spline hub (1) exactly "tooth-to-tooth gap".

Fig 22: Rotating Spline Hub

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: The "first" matching tooth must engage.

Inlet side:

Place special tool 11 7 160 on bore in spline hub (1). Rotate spline hub (1) against direction of rotation until splined shaft (2) is positioned with spline hub (1) exactly "tooth-to-tooth gap".

Fig 23: Rotating Spline Hub

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: The "first" matching tooth must engage.

Exhaust side:

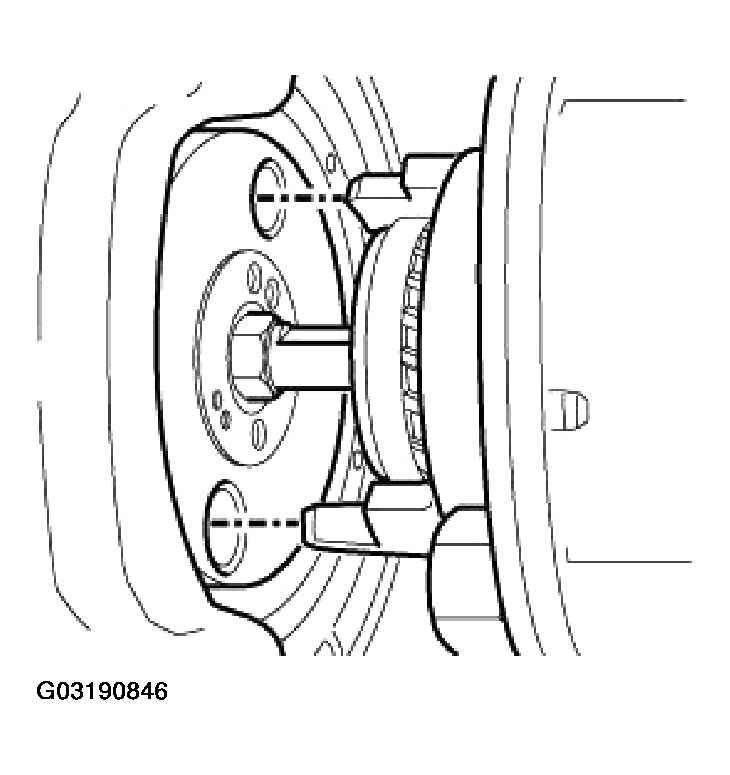

Align radial piston pump to driver on spline hub.

NOTE: Picture shows a schematic representation.

Fig 24: Aligning Radial Piston Pump To Driver

Courtesy of BMW OF NORTH AMERICA, INC.

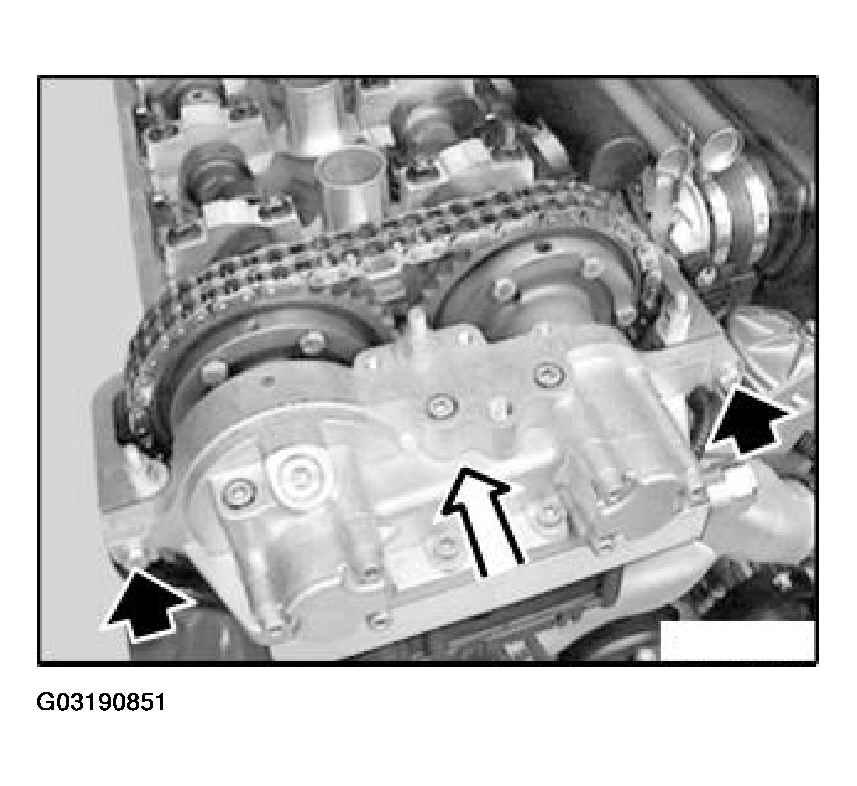

Push on VANOS adjustment unit until it contacts special tool 11 9 170.

CAUTION: If this position is not reached, realign position of radial piston pump to driver.

Fig 25: Pushing On VANOS Adjustment Unit

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not tighten down screws.

NOTE: Screw on left and right serves to secure the VANOS adjustment unit.

Insert a screw on left and right and tighten by hand until free of play.

Fig 26: Identifying Screws Securing VANOS Adjustment Unit

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The procedure described below helps to provide compensation for play.
Only with this compensation for play is the timing diagram correctly set.

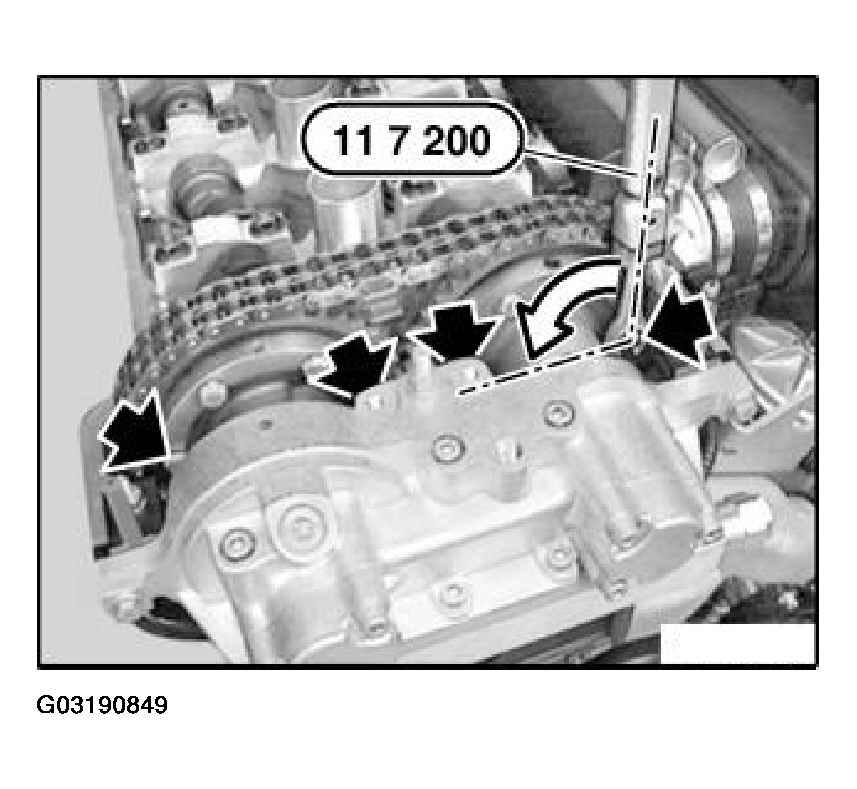

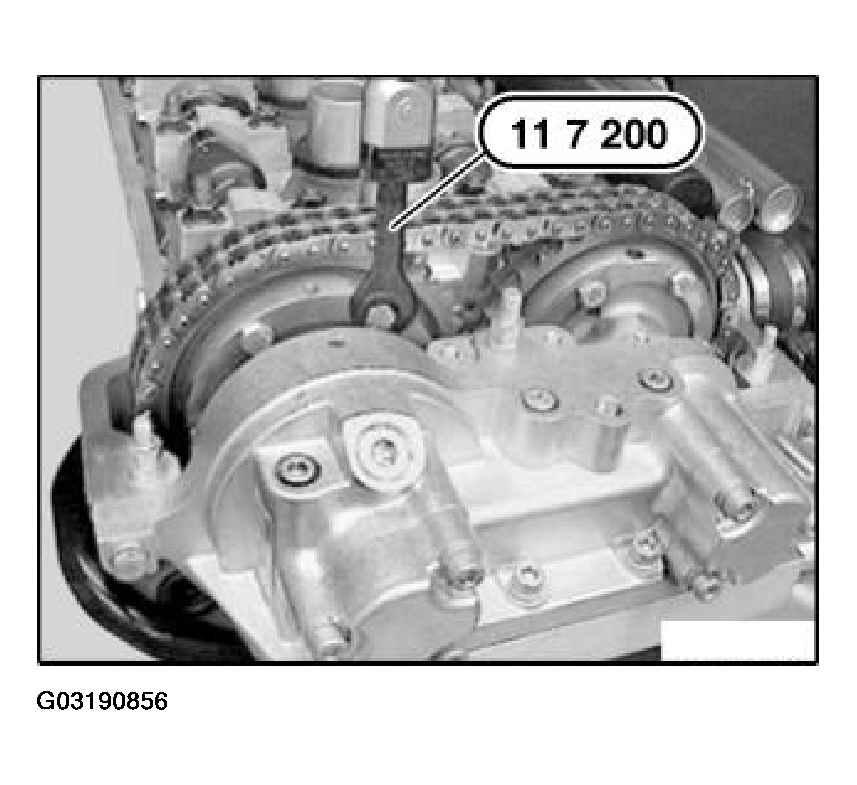

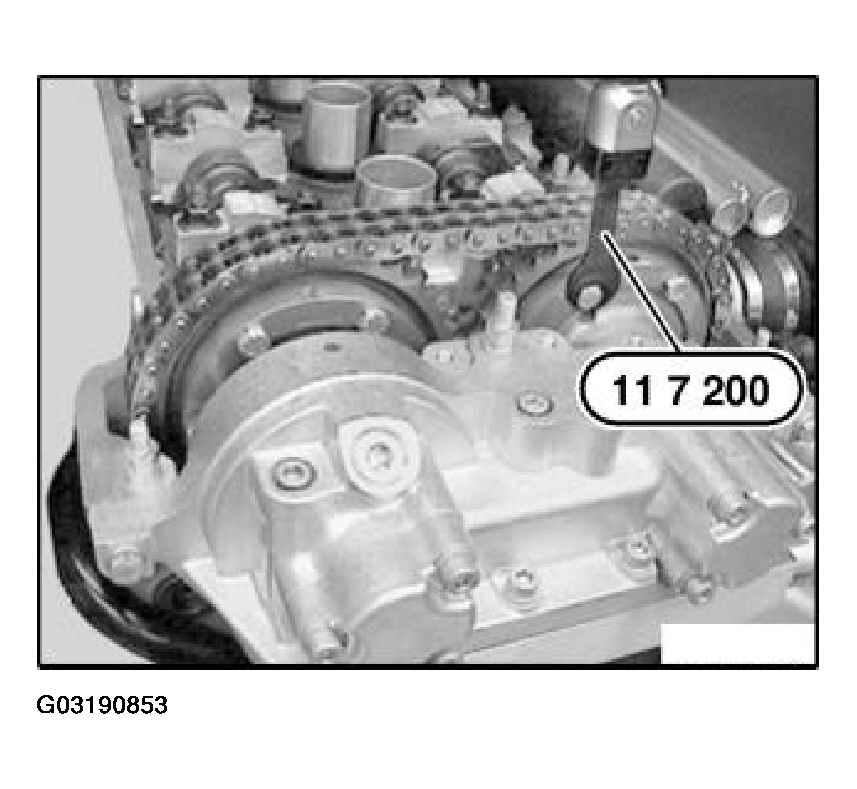

NOTE: To tighten down screws on VANOS gear: Use special tool 11 7 200.

Tighten down the two opposing screws on the inlet and exhaust sides of the VANOS gear to 10 N.m.

Fig 27: Tightening Down Screws On VANOS Gear

Courtesy of BMW OF NORTH AMERICA, INC.

Then slacken all four screws by a 1/4 turn.

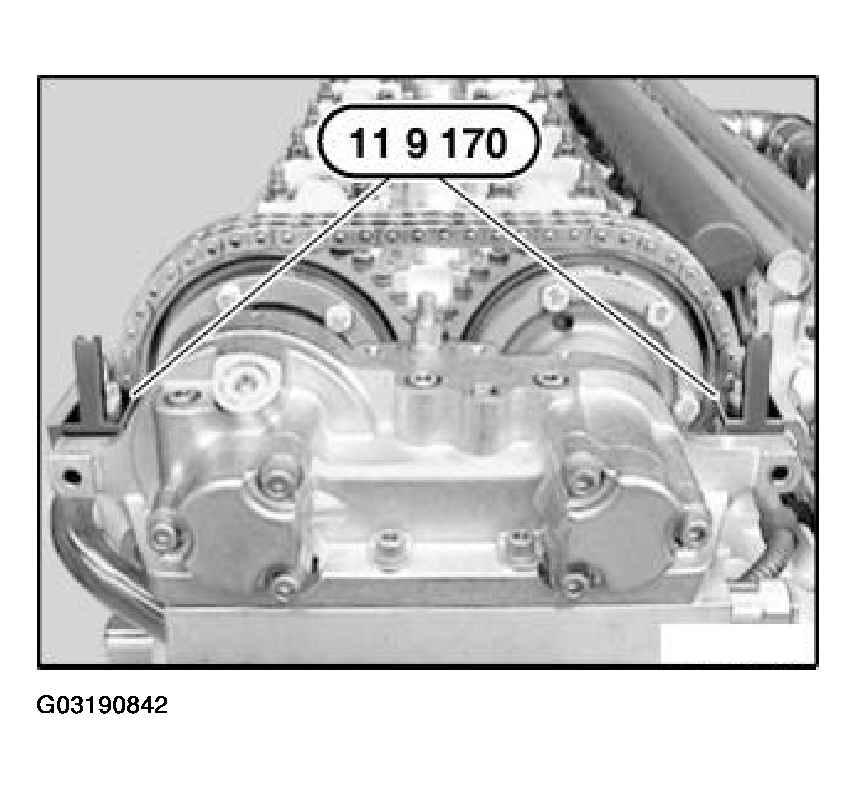

Remove special tool 11 9 170 on left and right sides.

Fig 28: Removing Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Make sure that radial piston pump is aligned to driver on spline hub.
When the left and right screws are tightened down alternately, the exhaust and inlet camshafts must not rotate.
If the camshafts do rotate, this means that the screws on the VANOS gear were not previously released correctly.

Alternately tighten down bolts in 1/2 turn increments carefully and evenly until VANOS adjustment unit rests against timing case cover.

Fig 29: Tightening Down Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Insert remaining screws and tighten down.

Fig 30: Inserting Remaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Use special tool 11 7 200 to tighten down bolts on VANOS gear.

Fig 31: Tightening Down Bolts On VANOS Gear

Courtesy of BMW OF NORTH AMERICA, INC.

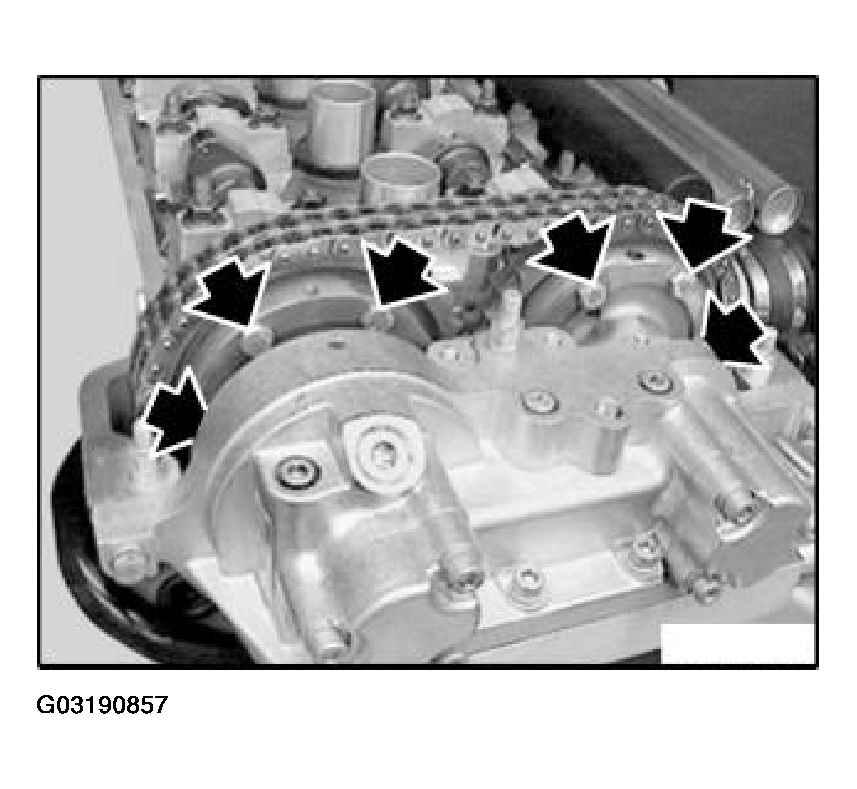

Tighten down six accessible screws (three on exhaust side and three on inlet side) on VANOS gear to 10 N.m.

Fig 32: Tightening Down Accessible Screws On VANOS Gear

Courtesy of BMW OF NORTH AMERICA, INC.

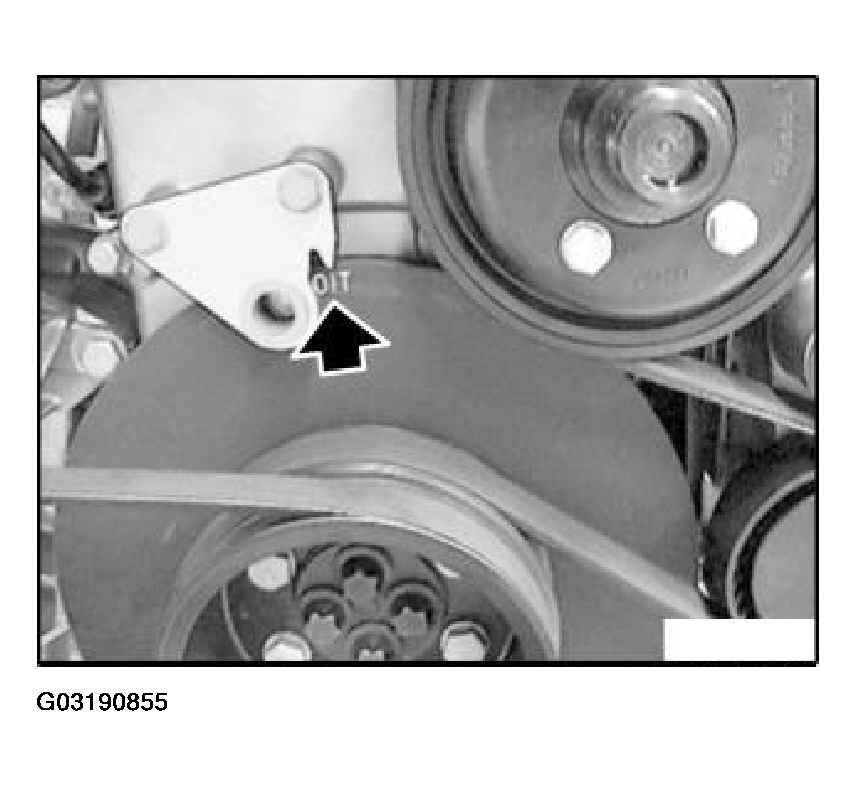

Remove special tool 11 2 300. Rotate crankshaft in direction of rotation a further revolution up to overlap TDC position.

NOTE: TDC allocation above marking on vibration damper is sufficient.

Fig 33: Identifying Marking On Vibration Damper

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Use special tool 11 7 200 to tighten down bolts on VANOS gear.

Fig 34: Tightening Down Bolts On VANOS

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down remaining six screws (three on exhaust side and three on inlet side) on VANOS gear to 10 N.m.

Fig 35: Tightening Down Remaining Screws On VANOS Gear

Courtesy of BMW OF NORTH AMERICA, INC.

Then crank engine again in direction of rotation until 1st cylinder is at TDC firing position.

Secure vibration damper in position with special tool 11 2 300.

Fig 36: Securing Vibration Damper In Position

Courtesy of BMW OF NORTH AMERICA, INC.

Check camshaft setting:

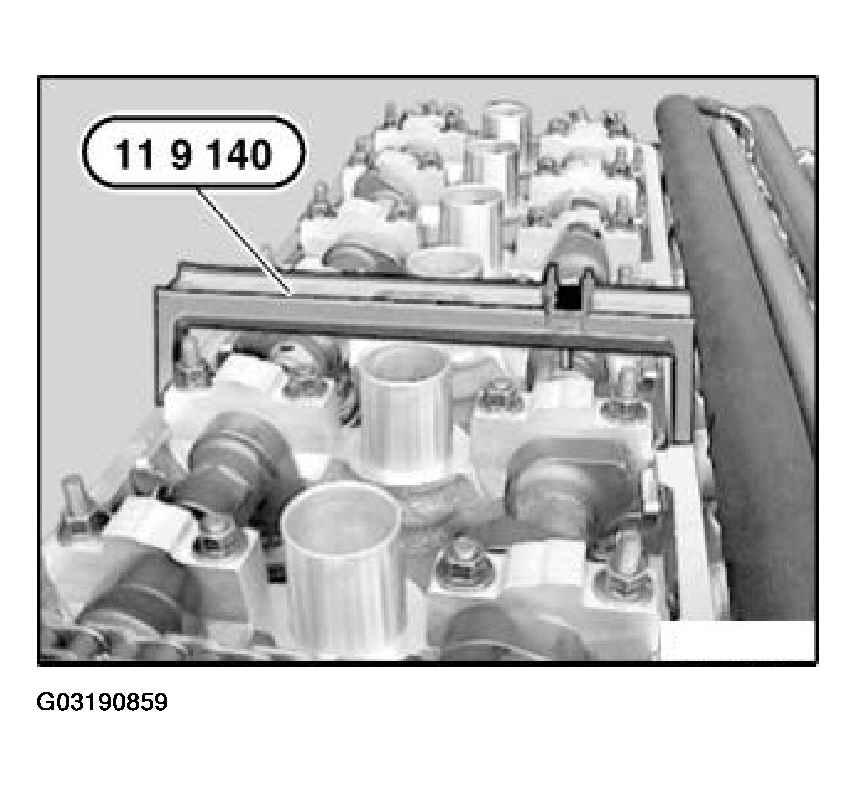

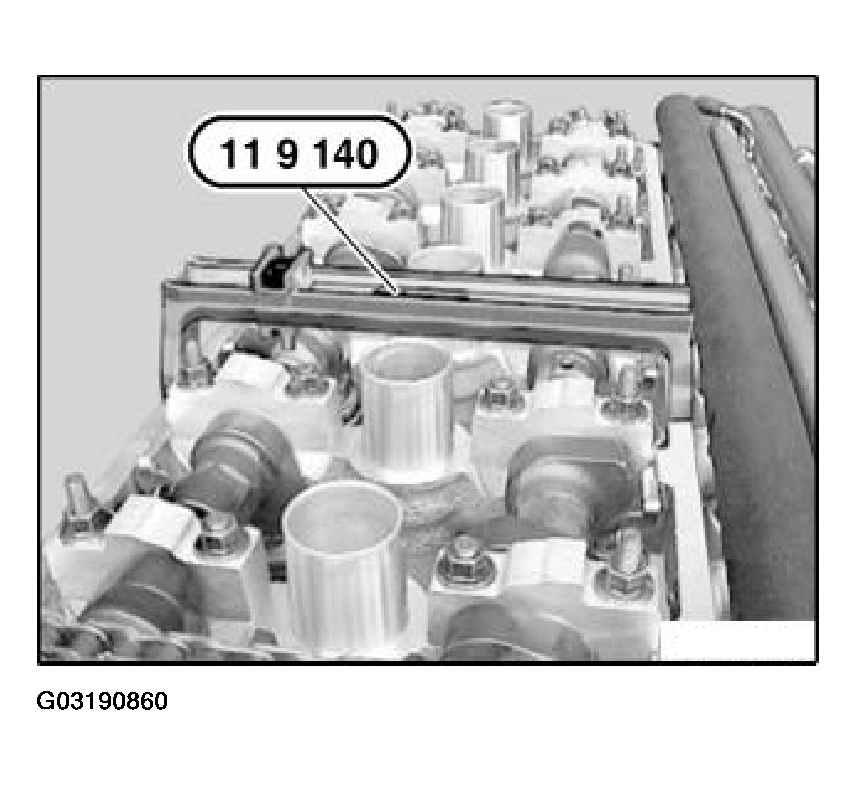

Attach special tool 11 9 140 and join in inlet camshaft.

Fig 37: Checking Inlet Camshaft Setting

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The inlet camshaft is correctly adjusted when special tool 11 9 140 rests flat on the cylinder head or protrudes by max. 0.5 mm to the exhaust side.
If the special tool 11 9 140 protrudes to the inlet side, the timing must be readjusted.

Join special tool 11 9 140 in exhaust camshaft.

NOTE: The exhaust camshaft is correctly adjusted when special tool 11 9 140 rests flat on the cylinder head or protrudes by max. 0.5 mm to the exhaust side.
If the special tool 11 9 140 protrudes to the inlet side, the timing must be readjusted.

Fig 38: Checking Exhaust Camshaft Setting

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check installed direction.

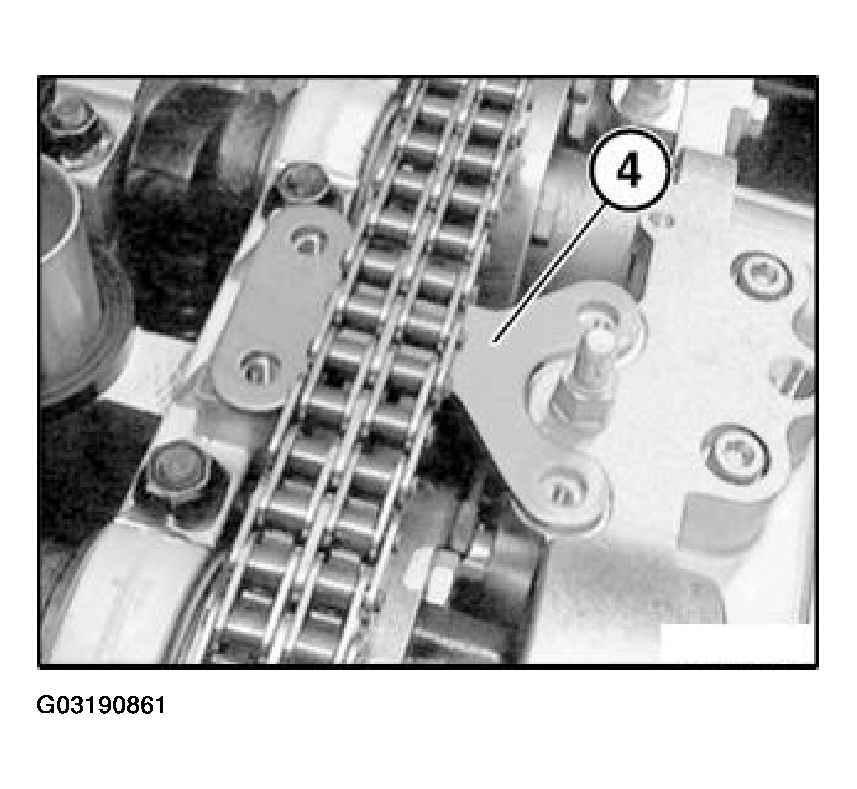

Install holder (4).

Fig 39: Installing Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Insert screws (3) and secure holder (4) (do not tighten down screws (3) yet)
Install sliding rail (2).
Insert screws (1).
Tighten down screws (1) and screws (3).

Fig 40: Installing Holder & Sliding Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Replace sealing rings of banjo bolt.

Insert banjo bolt but do not tighten down yet.

Fig 41: Inserting Banjo Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

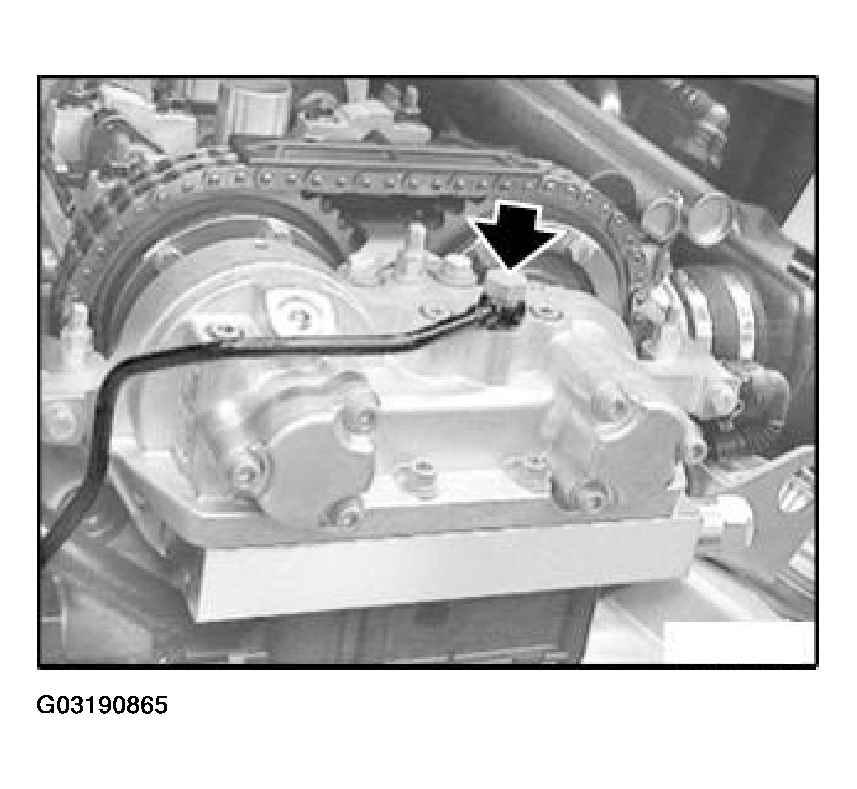

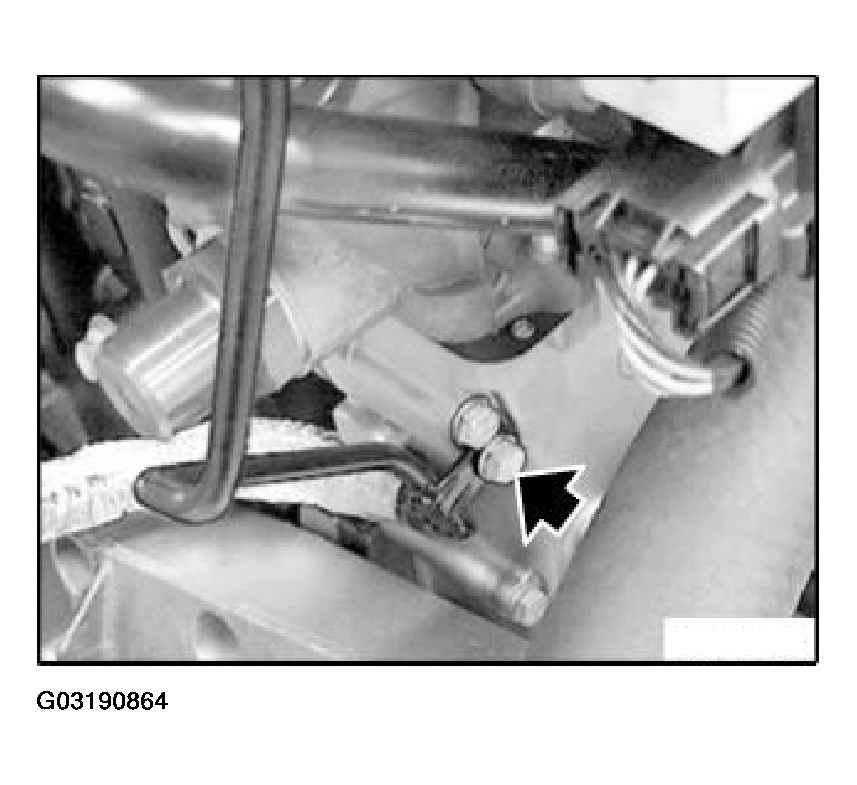

Install bracket of oil line. Install screw and tighten down.

Fig 42: Installing Bracket Of Oil Line

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down banjo bolt of oil line.

Fig 43: Tightening Down Banjo Bolt Of Oil Line

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, 11 36 9AZ. Refer to 11 36 VARIABLE CAMSHAFT CONTROL .

Remove special tool 11 2 300.

Assemble engine.

Fig 44: Removing Special Tool 11 2 300

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: There is air in the VANOS system once it is opened.
In the first few seconds after startup this results in a clearly discernible "rattling noise".
This rattling noise does "not" indicate incorrect assembly.
The rattling noise will disappear as soon as the oil pressure has built up and the system has vented.
