37... Overview of 2-axle ride-height control

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

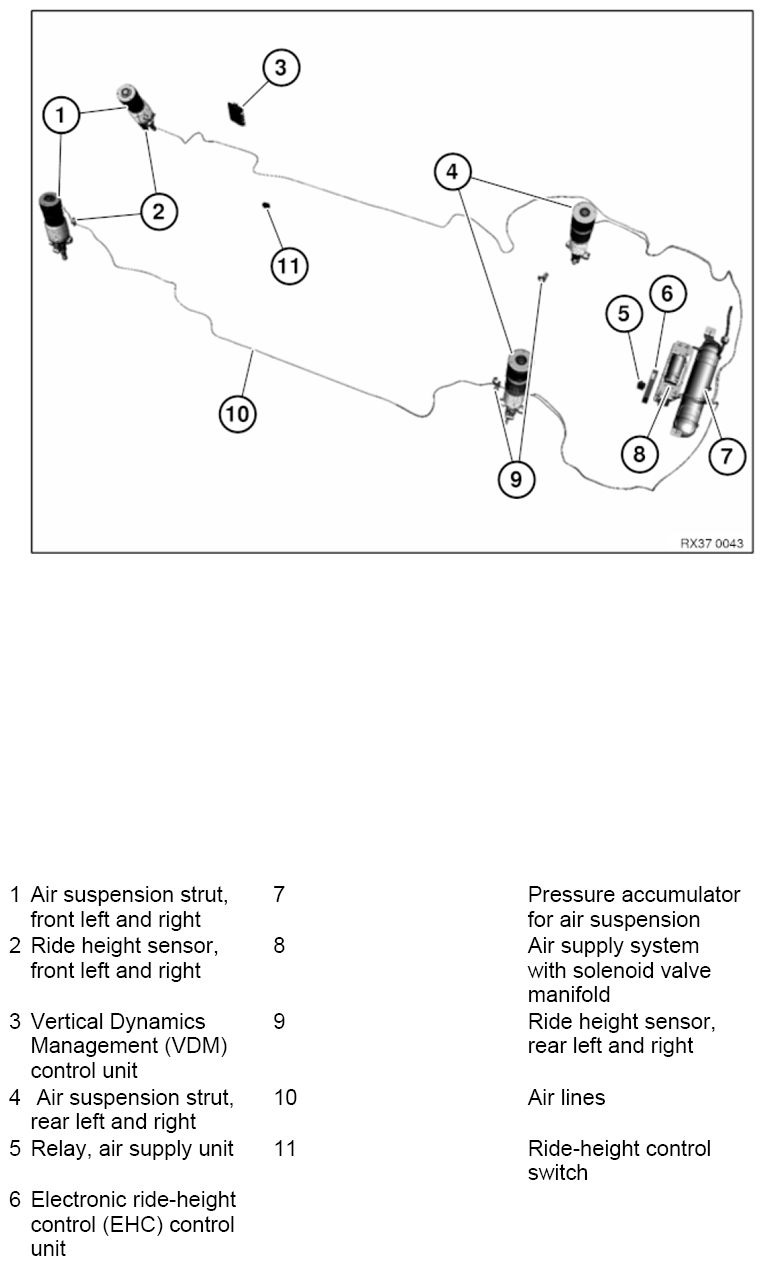

Fig 1: Overview Of 2-Axle Ride-Height Control
G06976881Courtesy of BMW OF NORTH AMERICA, INC.
