Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT BATTERY NEGATIVE LEAD and cover
Remove TRIM PANEL FOR DOOR PILLAR (BOTTOM)

Release screw (1).

Loosen screw (2).

Installation:

Tightening torque 65 77 5AZ .

If necessary, remove B-pillar sound insulation (5).

Raise B-pillar sensor (3) slightly through opening in B-pillar and feed out towards rear.

Unfasten plug connection (4) and disconnect.

Remove B-pillar sensor (3) from B-pillar.

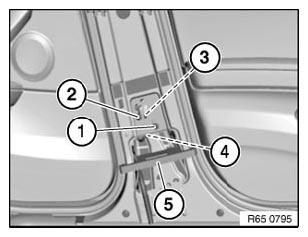

Fig 1: Identifying B-Pillar Sensor And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Establish correct positioning of B-pillar sensor (1) by means of guide pin (2) and screw (3).

Fig 2: Identifying B-Pillar Sensor, Guide Pin And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
