65 77 541 Removing and installing/replacing front left or right acceleration sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Acceleration sensor only fitted in US version!

Unlock plastic fasteners (1) by turning counterclockwise through 180°.

Feed flap (2) in direction of arrow out of front wheel arch cover (3) and remove.

Fig 1: Removing Flap From Front Wheel Arch Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove acceleration sensor (2).

Disconnect plug connection (3).

Installation:

Replace screws (1).

Tightening torque 65 77 9AZ .

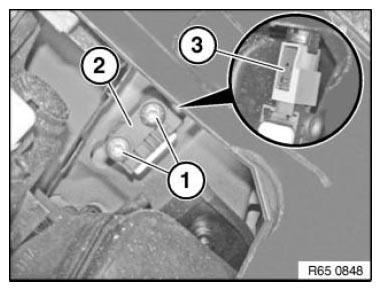

Fig 2: Identifying Screws, Plug Connection And Acceleration Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
