Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect BATTERY NEGATIVE LEAD
Remove LUGGAGE COMPARTMENT FLOOR TRIM

NOTE: Follow instructions for HANDLING OPTICAL FIBRES .

Disconnect plug connection (1).

Release screws (2) and remove bracket (3) with video module.

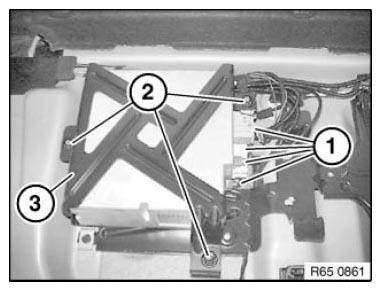

Fig 1: Identifying Plug Connection, Screws And Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (1) and remove bracket (2) from video module (3).

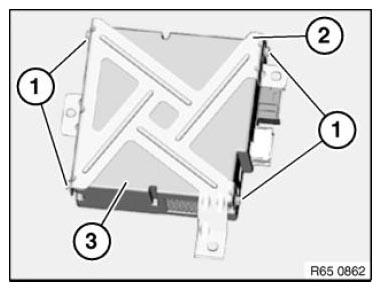

Fig 2: Identifying Screws, Bracket And Video Module

Courtesy of BMW OF NORTH AMERICA, INC.
