Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Illustrations show removal of the TV amplifier on the left side. The TV amplifier on the right side is removed in the same way.

Disconnect plug connection (1).

Release screw (2).

Remove TV amplifier (3).

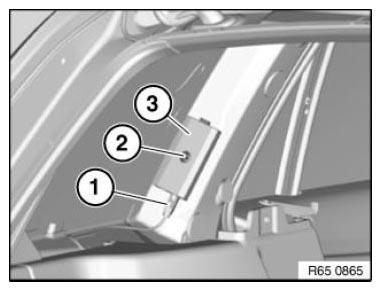

Fig 1: Identifying Plug Connection, Screw And TV Amplifier
G06980317Courtesy of BMW OF NORTH AMERICA, INC.
