Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove BOTH TRIM PANELS FOR ROOF PILLARS AT REAR
Remove REAR LEFT INTERIOR LIGHT
Remove REAR LEFT GRAB HANDLE

IMPORTANT: Do not kink roofliner under any circumstances!

Pull off muckets of rear lid and rear doors in roof area.

Unclip roofliner (1) in middle area downwards and lower.

Installation:

Holder (2) for roofliner (1) must be replaced.

Fig 1: Identifying Screw And Roof Aerial/Antenna

G06979950

Courtesy of BMW OF NORTH AMERICA, INC.

Version with dividing net mounts (1):

Fold back cover (2) for dividing net mount (1).

Release screw (3) and remove dividing net mount (1).

Installation:

Observe position indications on reverse side of dividing net mount (1).

Fig 2: Identifying Dividing Net Mount, Screw And Back Cover

G06979949

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, following graphics show roofliner removed.

Release screw (1), slacken screw (3) and turn countersupport holder (2) back in direction of arrow.

Fig 3: Identifying Screw, Slacken Screw And Countersupport Holder

G06980320

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1, 2).

Unfasten screw (3) and remove blocking circuit.

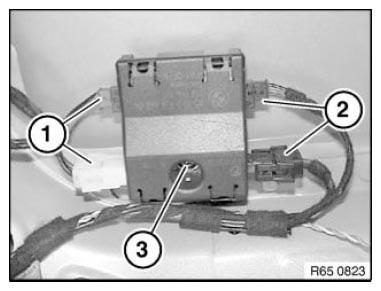

Fig 4: Identifying Plug Connection And Screw

G06980321

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Align blocking circuit to body by way of screw and positioning pin.

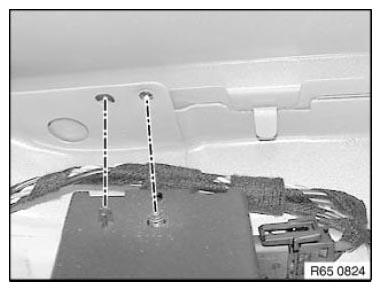

Fig 5: Positioning Pin

G06980322

Courtesy of BMW OF NORTH AMERICA, INC.
