Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove REAR SPOILER

Remove cover (1).

Installation:

Make rubber grommets (2) are correctly seated.

Cover (1) must snap audibly into place.

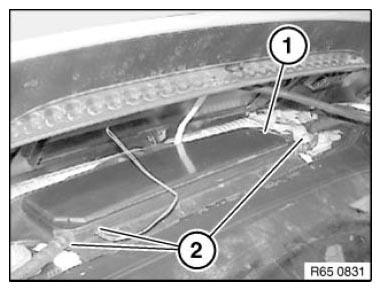

Fig 1: Identifying Rubber Grommets And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not pull on ribbon cable.
Correctly unlock and disconnect plug connection.

Disconnect plug connection (1).

Release screws (2) and remove aerial/antenna amplifier (3).

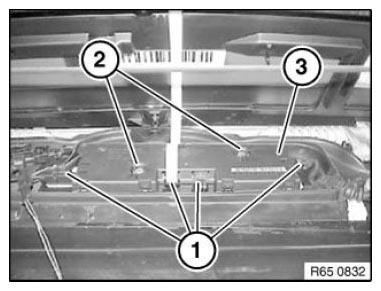

Fig 2: Identifying Plug Connection, Screws And Aerial/Antenna Amplifier

Courtesy of BMW OF NORTH AMERICA, INC.
