65 12 072 Removing and installing (replacing) amplifier (Top HiFi system): Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1) and remove amplifier (2) from bracket (3).

Fig 1: Identifying Screws, Amplifier And Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Until 09/2009 a Top HiFi amplifier with a different pin assignment is installed!

Install cable jumper consisting of socket (1) (BMW Parts Service 6901844) and wire jumper (2) in connector (3).

Create wire jumper (2) from wire (cross-section 0.75 mm² ) and two stops (BMW Parts Department 1393724).

Then connect pins 1 and 2 in the socket (1) with wire jumper (2).

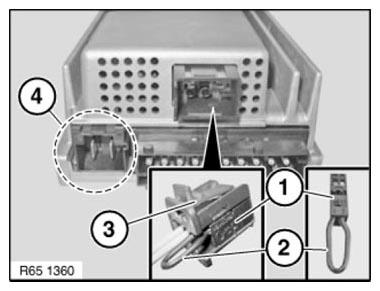

Fig 2: Identifying Cable Jumper, Wire Jumper, Connector And Connector Chamber

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Connector chamber (4) is not included in current version and remains unused in new replacement Top HiFi amplifier!

Replacement:

Carry out vehicle programming/encoding
