Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

Disconnect plug connections (2) and remove bracket with DAB tuner (3).

Installation:

DAB tuner bracket (3) must be inserted in guides.

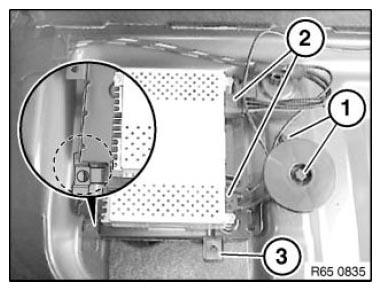

Fig 1: Identifying Screws, Plug Connections And DAB Tuner Bracket
G06980268Courtesy of BMW OF NORTH AMERICA, INC.
