Necessary preliminary tasks
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
- Remove CD magazine
- Disconnect BATTERY NEGATIVE LEAD
- Remove LUGGAGE COMPARTMENT TRIM ON LEFT .
Partially detach left wheel arch cover and press to one side.

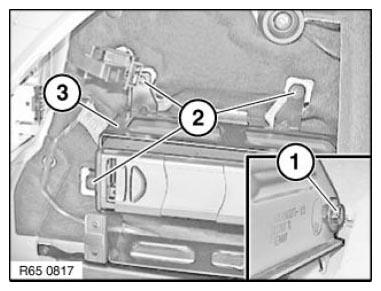

Release screw (1).
Release screws (2) and remove CD changer with bracket (3).
Disconnect associated plug connection and unclip cable guide from bracket (3).
Installation:
Make sure sheet metal nuts and CD changer are correctly seated. Bracket fixture must be inserted in side panel.
