Removal And Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove RIGHT LUGGAGE COMPARTMENT TRIM PANEL

Release clips (1).

Unclip wiring harness mounting (2).

Remove insulating mat (3).

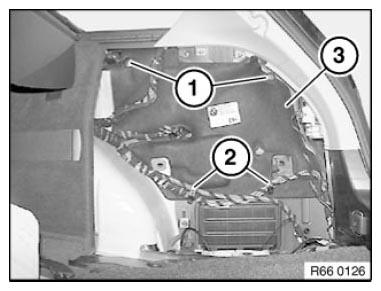

Fig 1: Identifying Insulating Mat, Wiring Harness Mounting And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Unlock catch (2) in direction of arrow and remove control unit (3) upwards from device carrier (4).

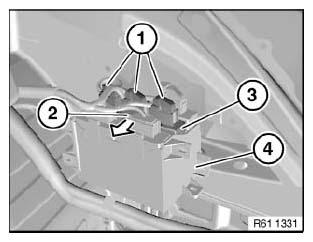

Fig 2: Removing Control Unit From Device Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
