41 62 520 Removing and installing/replacing left or right hinge for rear lid

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR WINDOW
Remove TRIM FOR REAR WINDOW FRAME AT TOP
Release roof trim panel in rear area

Close rear lid.

Release nuts (1).

Tightening torque 41 62 3AZ .

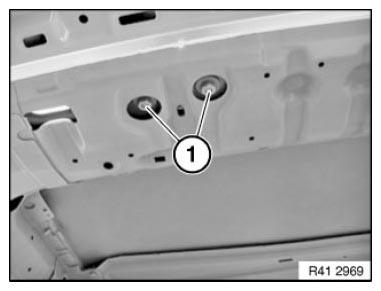

Fig 1: Identifying Left Or Right Rear Lid Nut

G06978472

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 41 62 1AZ .

Remove hinge (2).

Fig 2: Identifying Screw And Hinge

G06978471

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Before final assembly, apply sealing compound in areas (1).

Adjust rear lid on the basis of the GAP DIMENSIONS, BODY

Fig 3: Identifying Sealing Compound Areas

G06978474

Courtesy of BMW OF NORTH AMERICA, INC.
