25 11... Overview of gearshift mechanism for manual transmission

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

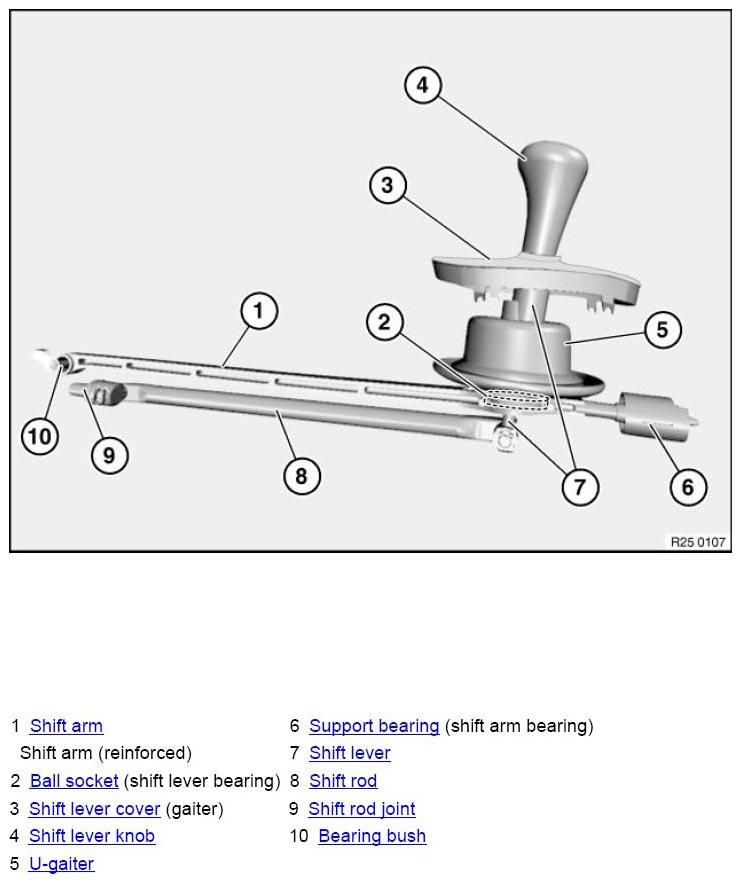

Fig 1: Overview Of Gearshift Mechanism For Manual Transmission
G06977412Courtesy of BMW OF NORTH AMERICA, INC.
