Necessary preliminary tasks

WARNING: This page is about a different car, the 2012 BMW 328i, 2011 BMW 328i, 2010 BMW 328i, 2009 BMW 328i, and 2008 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.

Replace PROPELLER SHAFT CENTRE MOUNT

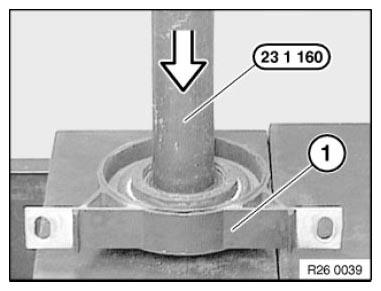

Press grooved ball bearing using special tool 23 1 160 out of center mount (1).

NOTE: Illustration shows E46.

Fig 1: Pulling Propeller Shaft Apart

Courtesy of BMW OF NORTH AMERICA, INC.

Coat rubber-coated bearing seat of center mount (2) with Circolight.

Circolight, refer to BMW Parts Service.

Use special tools 33 3 202 / 33 3 203 to press deep groove ball bearing (1) into center mount (2).

Fig 2: Pressing Deep Groove Ball Bearing Into Centre Mount Using Special Tools (33 3 202) And (33 3 203)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustration shows E46.
