Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove BACKREST FOR REAR SEAT
Remove COVER STRIP
Remove SKI BAG

Release screws (1).

Remove roller blind mounting.

Fig 1: Identifying Roller Blind Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

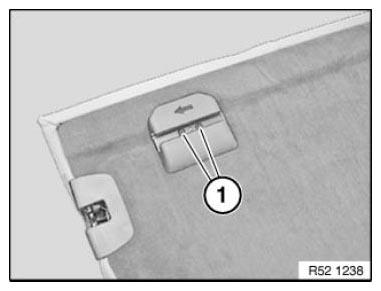

Gently slide lock trim (1) on side edge of backrest downwards and unclip to one side.

Gently slide lock trim (1) on rear side towards middle and unclip.

Remove lock trim (1).

Fig 2: Removing Lock Trim

Courtesy of BMW OF NORTH AMERICA, INC.
