Necessary preliminary tasks

• Remove FRONT SEAT .
• Remove OUTER COVER  on front seat.

US/CDN front passenger seat (with OC3 mat) only:

New seat cover is supplied with padding, OC3 mat and if necessary seat heating.

When replacing padding or OC3 mat:

If OC3 mat or padding is defective, both parts must be replaced together.

These must be fitted with the seat cover from the car.

Enabling seat occupancy detector (OC3 mat):

• Connect BMW programming system
• Code airbag control unit
• Clear fault memory if necessary

Only when replacing OC3 mat with padding:

OC3 mat (1) is secured on the left and right sides in the marked area with a longitudinal trim wire for transportation.

Carefully remove adhesive tape (2).

Fig 1: Identifying OC3 Mat And Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.

Removing transportation lock:

Carefully release retainers in marked area on left and right from longitudinal trim wires (1).

Fig 2: Identifying Longitudinal Trim Wire

Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat heating and/or with seat occupancy detector (OC3 mat) only:

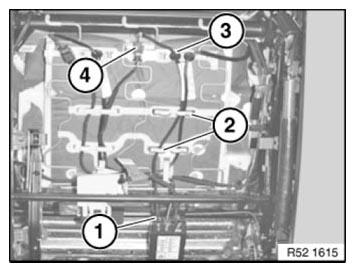

Unfasten plug connection (1) and disconnect.

Unclip seat heating cable (2).

Disengage seat heating cable (2) from cable holders (3).

Disconnect plug connection for seat occupancy detector (4).

Fig 3: Identifying Plug Connection, Heating Cable, Cable Holders And Seat Occupancy Detector

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

A = Catch, old version

B = Catch, new version

Fig 4: Identifying Plugs And Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Remove trim (2) from inside of seat.

Fig 5: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Lever clip (1) out of seat cover on left and right.

Installation:

If necessary, replace faulty clip.

Fig 6: Identifying Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Detach seat cover (1) from seat frame.

Fig 7: Removing Seat Cover From Seat Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out cover welt (1) completely from seat frame (2).

Fig 8: Pulling Cover Welt From Seat Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Remove seat cover (1) with padding towards front/top.

Fig 9: Removing Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat heater and/or with seat occupancy detector (OC3 mat):

Release the corresponding plug connections depending on the version and disconnect.

Pull seat cover (1) with padding forward a little and feed cable (2) out.

Remove seat cover (1) with padding towards front/top.

Fig 10: Identifying Seat Cover And Feed Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully detach all retainers in side area from longitudinal wires (1).

Pull trim wires (1) forward out of seat cover.

Carefully fold back seat cover and release retainers from cross-wires (2).

Remove seat cover from padding.

Fig 11: Identifying Retainers In Longitudinal Wires And Cross-Wires

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

If necessary, cut new seat cover to size and insert trim wires.

Fig 12: Identifying Seat Cover Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Bend new clips (2) with special tool 52 0 050 .

1. Padding
2. Retainer
3. Trim wire in padding
4. Trim wire in cover
5. Seat cover

Fig 13: Bending Retainers Using Special Tool (52 0 050)

Courtesy of BMW OF NORTH AMERICA, INC.
