Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

Disconnect tank leak diagnosis module (2) from carbon canister in direction of arrow.

Installation:

Tightening torque 16 13 2AZ .

Replace sealing ring.

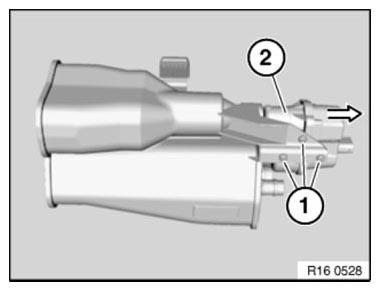

Fig 1: Disconnecting Tank Leak Diagnosis Module From Carbon Canister
G06976660Courtesy of BMW OF NORTH AMERICA, INC.
