Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove REAR PANEL ON FRONT SEAT BACKREST

Disconnect plug connection (1).

Remove drive unit for lumbar support (2) with jacket from backrest frame and expose.

Installation:

Make sure drive unit for lumbar support (2) is in correct installation position.

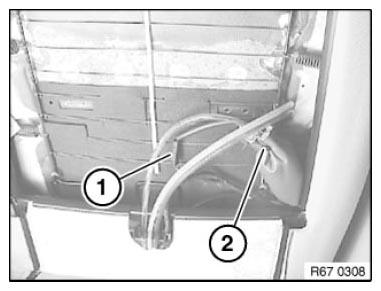

Fig 1: Turning Headlight Vertical Aim Adjuster

Courtesy of BMW OF NORTH AMERICA, INC.

Detach hose (1) from drive unit (2).

NOTE: Gently heat hose (1) if stuck.

Installation:

Hose (1) on drive unit (2) must not be kinked.

Pull jacket (3) off drive unit (2).

Remove drive unit for lumbar support (2).

Fig 2: Removing Drive Unit For Lumbar Support

Courtesy of BMW OF NORTH AMERICA, INC.
