Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove right LUGGAGE COMPARTMENT TRIM PANEL

Release retaining clips (1).

If necessary, unclip wiring harness fasteners (2).

Partially remove insulating mat (3).

Fig 1: Identifying Retaining Clips, Insulating Mat And Wiring Harness Fasteners

G06980367

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out emergency actuation pull strap (1) out of insulating mat.

Disconnect plug connection (2).

Slacken screws (3)

Feed servodrive (not visible) in direction of arrow out of retaining plate (4) and remove.

Installation:

Adjust servodrive position by means of both elongated holes (3).

It must be possible to lock or unlock the fuel filler flap completely.

Carry out function check.

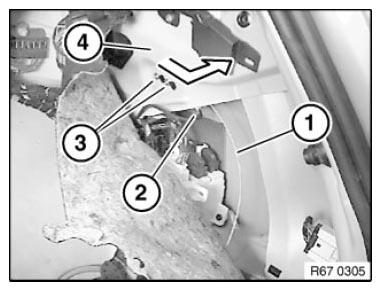

Fig 2: Removing Servodrive From Retaining Plate

G06980397

Courtesy of BMW OF NORTH AMERICA, INC.

Turn sleeve (1) with a suitable tool (e.g. pointed pliers) approx. 45° in direction of arrow and pull out of receptacle (2).

Fig 3: Turning Sleeve Using Suitable Tool

G04728029

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide sleeve (1) over locking pin (2).

Make sure sleeve (1) is correctly engaged in cover housing (3).

Fig 4: Sliding Sleeve Over Locking Pin

G04728030

Courtesy of BMW OF NORTH AMERICA, INC.
