11 53 000 Removing and installing/replacing coolant thermostat (N62)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of scalding! Only perform these tasks on an engine that has cooled down.

Recycling:

Catch and dispose of drained coolant.

Observe country-specific waste-disposal regulations.

Follow instructions for working on cooling system. Refer to 17 00 005 DRAINING AND ADDING COOLANT (N62) .

Remove front underbody protection.

Remove coolant drain plug on radiator. Drain and dispose of coolant.

Unlock plug (1) and remove.

Unlock and detach water hose (2).

Unfasten nut.

Release screws and remove coolant thermostat (3).

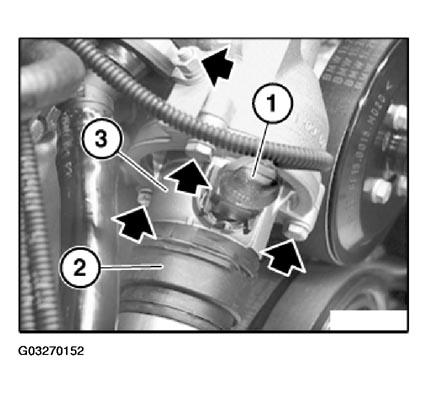

Fig 1: Locating Coolant Thermostat Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Coolant thermostat is integrated in cover and can only be replaced as a complete unit.

Clean sealing surfaces.

Replace sealing ring (1).

Installation:

Top up coolant. Refer to 17 00 039 VENTING COOLING SYSTEM AND CHECKING FOR LEAKS (N62, N62TU)

Vent cooling system and check for leaks. Refer to 17 00 039 VENTING COOLING SYSTEM AND CHECKING FOR LEAKS (N62, N62TU) .

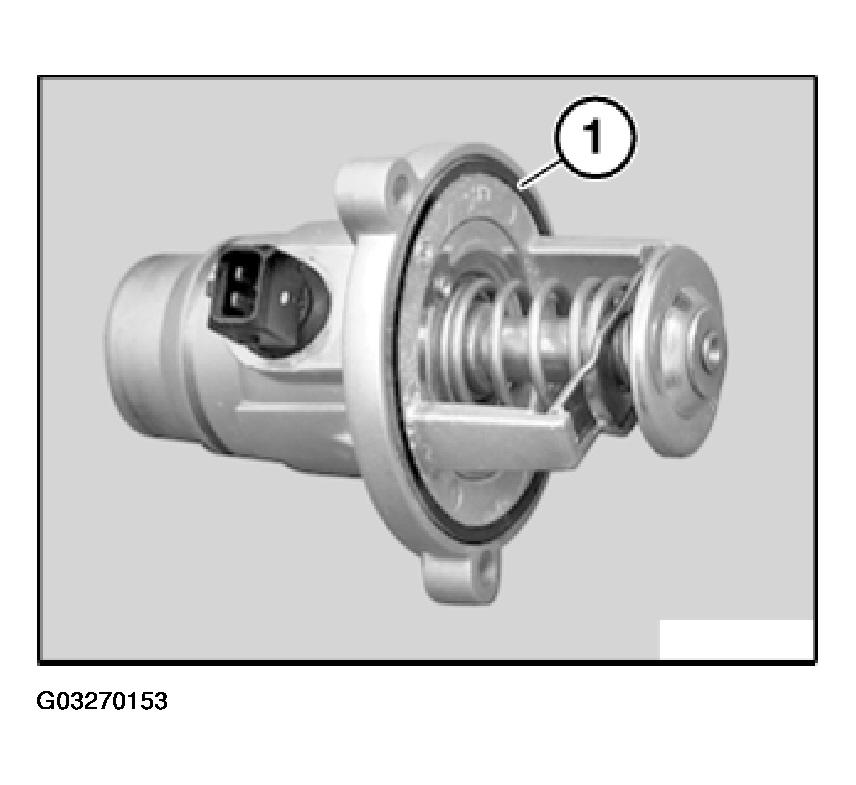

Fig 2: Replacing Coolant Thermostat Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.
