11 13 020 Removing and installing/replacing oil sump bottom section (N62/N62TU)
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
Remove reinforcement plate.
Remove oil drain plug and drain engine oil. Refer to 00 00 610 ENGINE OIL SERVICE (N62/N62TU) .

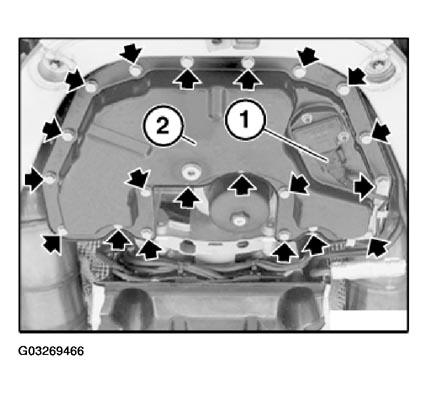

Unlock plug connection (1) on oil level sensor and disconnect.
Release screws and remove oil sump bottom section (2).
Tightening torque, refer to 11 13 2AZ in ENGINE - TIGHTENING TORQUES - 545I (4.4L) E60 .
Installation:
Clean sealing surfaces.
Replace seal.
Replace screws.
When replacing oil sump bottom section:
Convert oil level sensor.
Replace sealing ring.
