11 24 571 Replacing all conrod bearings (N62/N62TU)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see ENGINE- SPECIAL TOOLS - 5-SERIES (E60) and MAINTENANCE & GENERAL INFORMATION - SPECIAL TOOLS - 5-SERIES (E60) .

Special Tools Required:

00 2 590
00 9 120
11 2 110

(Piston Removed)

CAUTION: Note grinding stages on crankshaft. Refer to ENGINE - TECHNICAL DATA- 545I (4.4L) E60/N62 .

The letter (1) denotes the crankshaft construction stage.

The numbers (2) denote the bearing shell classification for the relevant bearing position from 1 to 5 (main bearing cap).

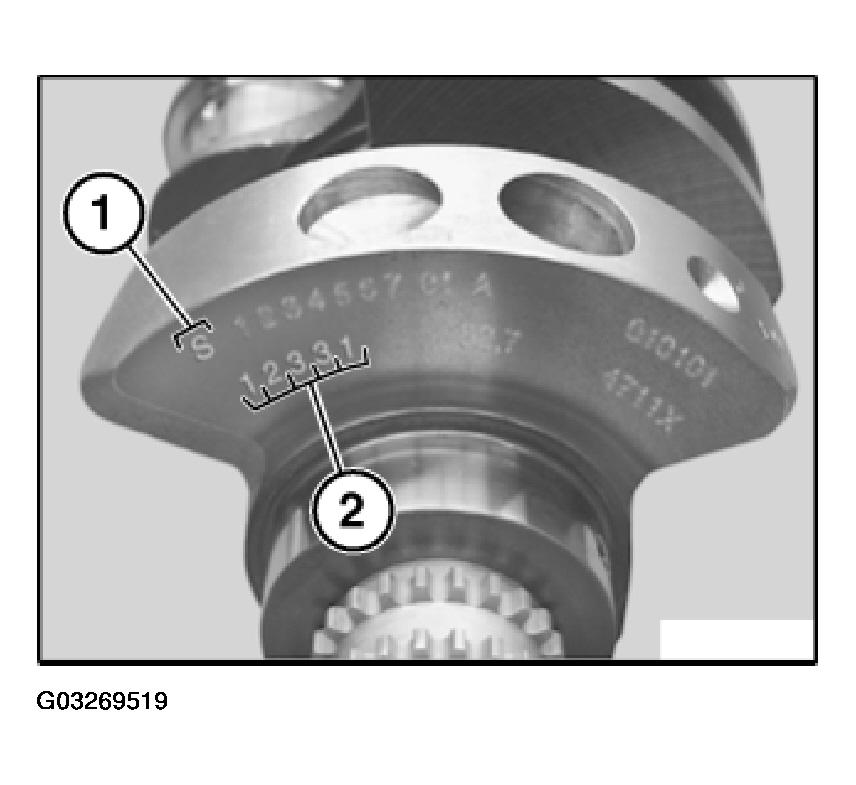

Fig 1: Identifying Crankshaft Construction Stage

Courtesy of BMW OF NORTH AMERICA, INC.

Install new conrod bearing shells.

Insert one red and one blue bearing shell for each conrod.

Install piston. Refer to 11 25 530 REMOVING AND INSTALLING/REPLACING ALL PISTONS (N62) .

Check Connecting-Rod Bearing Clearance:

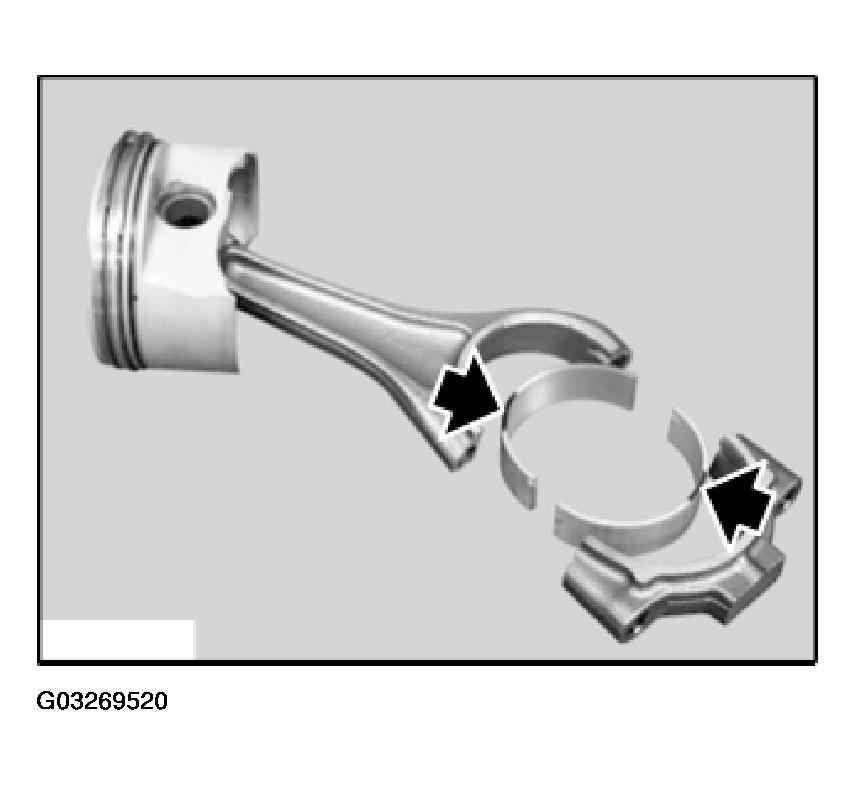

Fig 2: Identifying Conrod Bearing Shells

Courtesy of BMW OF NORTH AMERICA, INC.

Piston in BDC position.

Fit special tool 00 2 590 (Plastigage Type PG 1) to the oil-free crankshaft.

Position bearing caps so that pair numbers match up.

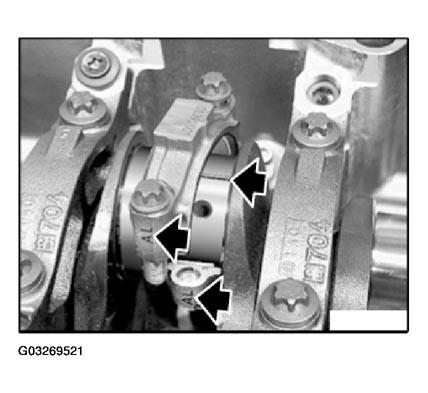

Fig 3: Checking Connecting-Rod Bearing Clearance

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not distort conrods or crankshaft.

Use the old connecting-rod bolts to check connecting-rod clearance.

Tighten down conrod bolts with special tool 00 9 120 or special tool 11 2 110.

Tightening torque, refer to 11 24 1AZ in ENGINE - TIGHTENING TORQUES - 545I (4.4L) E60 .

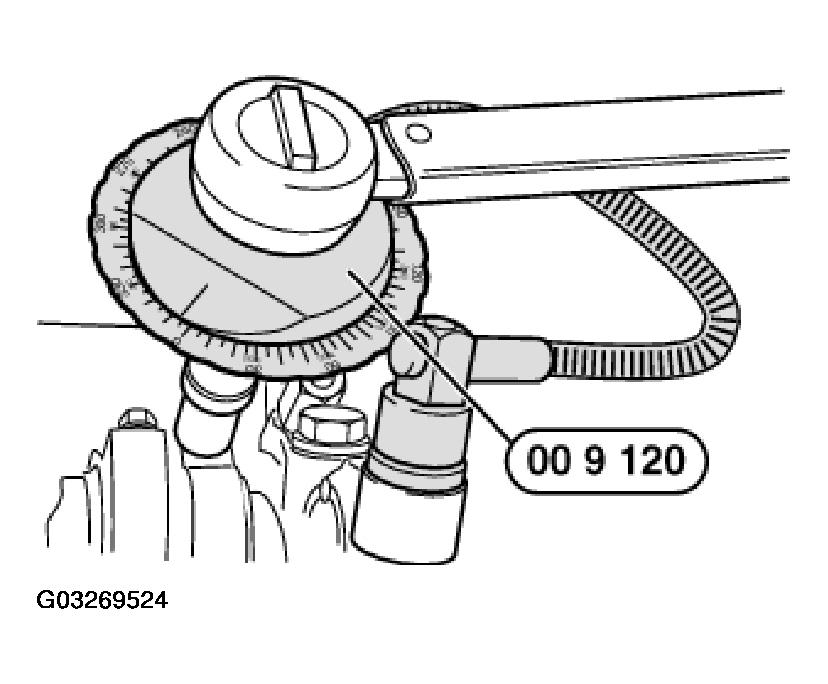

Fig 4: Tightening Down Conrod Bolts With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bearing cap and read off bearing play at width of flattened plastic thread with assistance of measurement scale.

Conrod bearing clearance. (refer to ENGINE - TECHNICAL DATA- 545I (4.4L) E60/N62 .)

Remove plastic thread.
Lubricate crankshaft and bearing shells.
Install new connecting-rod screws.

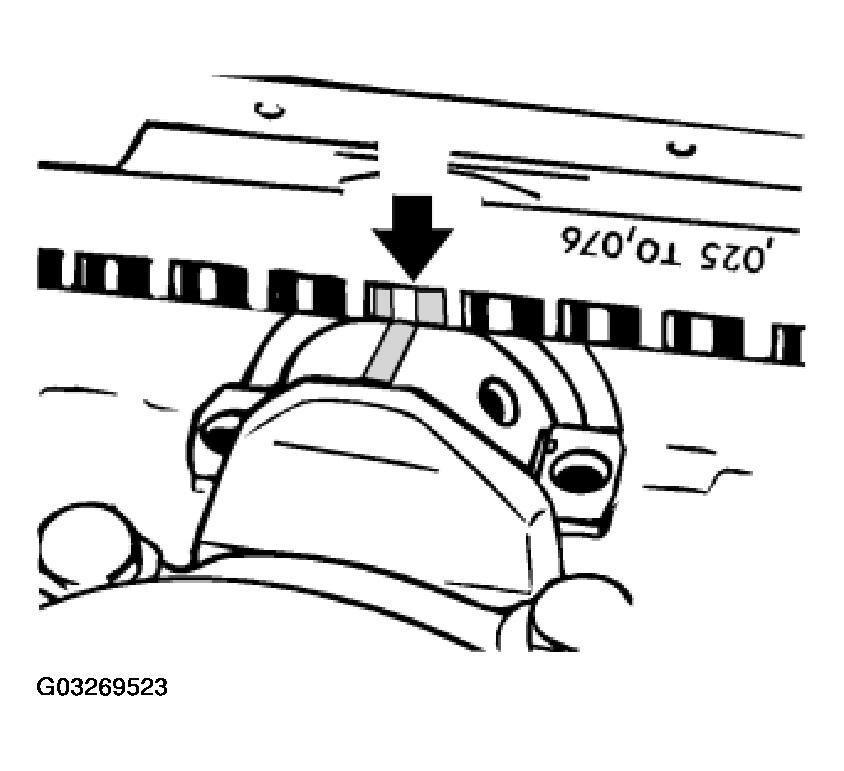

Fig 5: Reading Off Bearing Play With Measurement Scale
Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down conrod bolts with special tool 00 9 120 or special tool 11 2 110.

Tightening torque, refer to 11 24 1AZ in ENGINE - TIGHTENING TORQUES - 545I (4.4L) E60 .

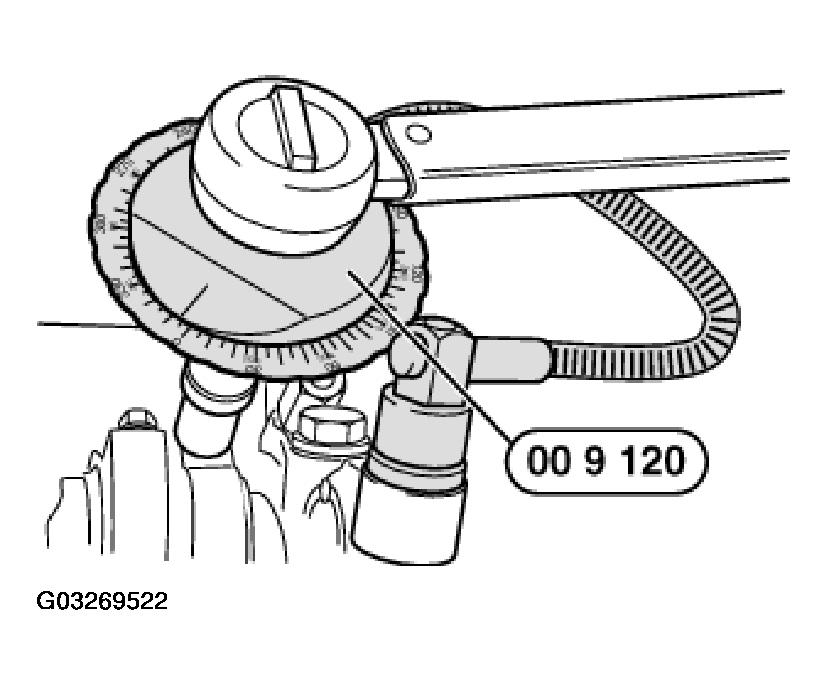

Fig 6: Securing Conrod Bolts With Torque Angle Measuring Dial

Courtesy of BMW OF NORTH AMERICA, INC.
