11 72 000 Removing and installing/replacing air pump (N62)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Remove upper section of intake filter housing.

Release retaining screws on coolant expansion tank.

Remove suction filter housing.

Remove raw air housing.

Unlock and disconnect pressure and suction lines (1).

Fig 1: Identifying Pressure And Suction Lines

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (2).

Loosen screw (3).

Remove front splash guard.

Remove trim panel at bottom right.

Unlock plug (1) and remove.

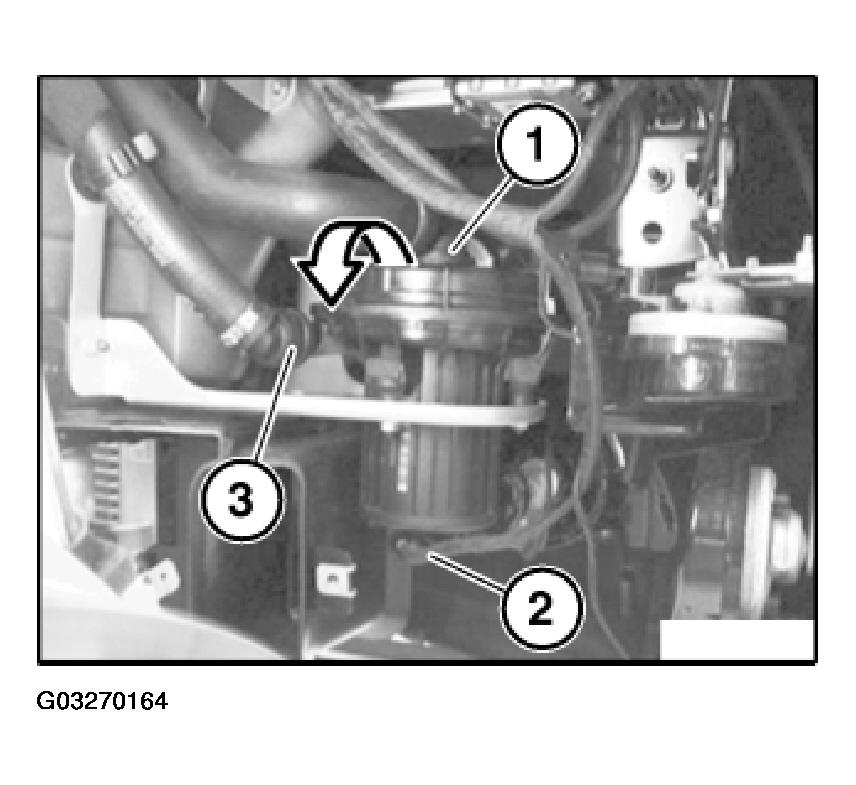

Fig 2: Removing Air Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew bolt (3)

Remove air pump (2)

Unscrew nuts.

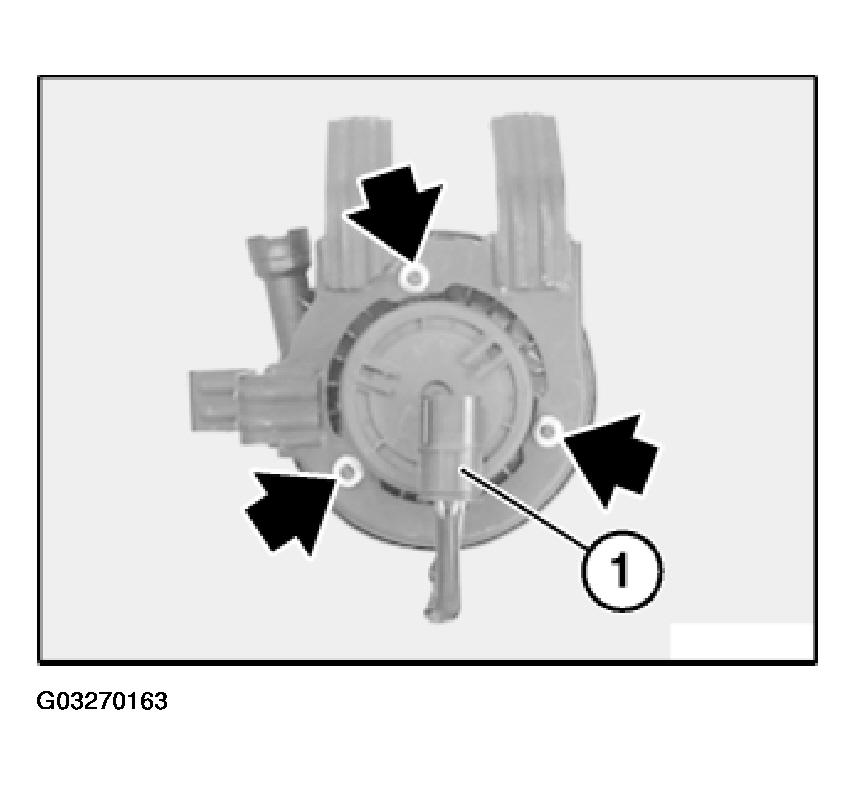

Fig 3: Locating Air Pump Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip plug (1).

Remove holder from air pump.

Necessary Preliminary Tasks:

Remove front right wheel. Refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .
Remove front right wheel arch trim. Refer to 51 71 040 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER .

Release nuts (3) from below.

Fig 1: Locating Air Pump Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and detach suction line (1).

Unlock and detach pressure line (3).

Disconnect plug connection (2).

Remove air pump in direction of arrow.

Fig 2: Removing Air Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Add final details to vehicle.

Check function of DME.
