Section 2918 (Front Axle - Repair - E91)
>>
3100 General
>>
31..... Layout of spring strut shock absorber
31..... Layout of spring strut shock absorber
WARNING:
This page is about a different car, the 2012 BMW 328i, 2011 BMW 328i, 2010 BMW 328i, and 2009 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.

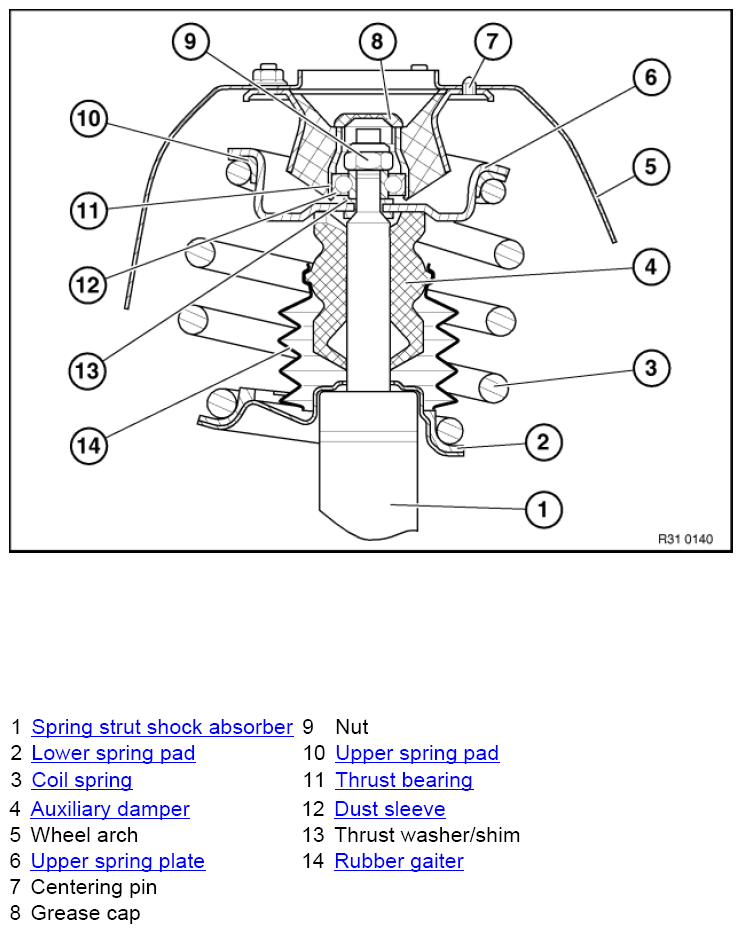

Fig 1: Layout Of Spring Strut Shock Absorber
Courtesy of BMW OF NORTH AMERICA, INC.
