Version 2:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Release shift cable head (1) from ball head.

Installation:

Adjust GEARSHIFT LEVER .

Fig 1: Identifying Shift Cable Head

G05476414

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Take off holder (2).

Tightening torque 24 51 1AZ .

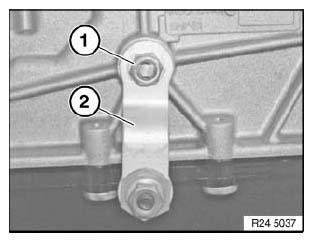

Fig 2: Identifying Holder And Nut

G04726123

Courtesy of BMW OF NORTH AMERICA, INC.

Screw in special tool 24 5 361 until it is firmly connected with radial shaft seal hat.

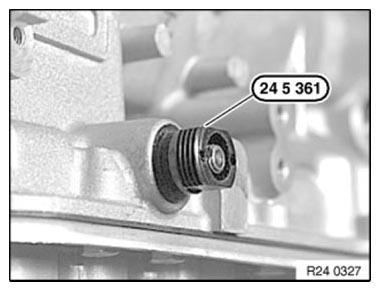

Fig 3: Connecting Radial Shaft Seal Using Special Tool 24 5 361

G06889468

Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 24 5 362 onto special tool 24 5 361 and tighten down.

This pulls the shaft seal out of the transmission housing.

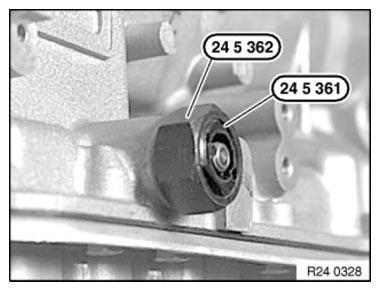

Fig 4: Tightening Special Tool 24 5 362 Onto Special Tool 24 5 361

G06889469

Courtesy of BMW OF NORTH AMERICA, INC.

Oil sealing lip on shaft seal (1).

Screw in radial shaft seal (1) with special tools 24 5 366 and 24 5 364 as far as it will go.

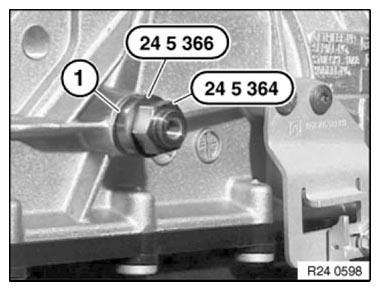

Fig 5: Tightening Radial Shaft Seal Using Special Tools 24 5 366 And 24 5 364

G06889470

Courtesy of BMW OF NORTH AMERICA, INC.
