Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove automatic transmission

If necessary:

Release screws.

Remove and convert transmission bearing block (1).

Tightening torque 24 71 6AZ .

Fig 1: Locating Convert Transmission Bearing Block

Courtesy of BMW OF NORTH AMERICA, INC.

Convert transportation retainer (1).

Convert all cable clips.

Convert all seal plugs.

Remove protective cap on output shaft.

IMPORTANT: After removing transportation retainer, secure torque converter against slipping out.

Transmission identification:

refer to BMW Parts Department.
On type plate

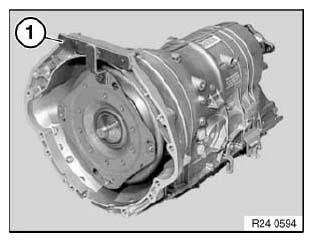

Fig 2: Identifying Transportation Lock

Courtesy of BMW OF NORTH AMERICA, INC.
