Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect BATTERY NEGATIVE LEAD
Remove underbody protection with bracket at front and rear.
Remove complete EXHAUST SYSTEM
Remove heat shields
Support engine with lifter when removing transmission

Release screws (1).

Remove bracket and heat shield.

Unclip lines (2).

Remove bracket (3).

Fig 1: Identifying Bracket, Lines And Heat Shield

G04726088

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connector (1).

Unfasten screws (2).

Remove retaining plate (3).

Tightening torque 24 00 2AZ .

Fig 2: Identifying Retaining Plate, Plug Connector And Screws

G04726089

Courtesy of BMW OF NORTH AMERICA, INC.

Release aluminum screws on right next to cable retaining plate with special tool 00 9 010 .

Aluminum screws must be replaced.

Tightening torque 24 00 2AZ .

Fig 3: Identifying Special Tool 00 9 010

G04726090

Courtesy of BMW OF NORTH AMERICA, INC.

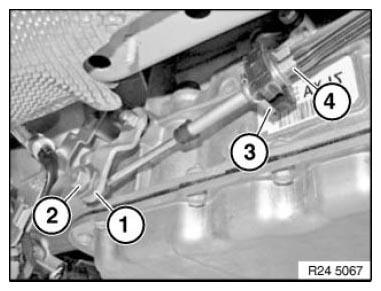

Grip clamping sleeve (1).

Loosen nut (2).

Detach retainer (3) downwards using a screwdriver.

Pull cable (4) out of bracket.

Installation:

ADJUST SELECTOR LEVER .

Fig 4: Identifying Clamping Sleeve, Retainer And Bracket Cable

G06977321

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Disconnect hydraulic lines (2) to transmission fluid cooler.

Installation:

Replace sealing rings.

Fig 5: Identifying Hydraulic Lines Of Transmission Fluid Cooler With Screw

G04726078

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) and bracket from transmission oil lines on oil sump.

Fig 6: Identifying Bracket Nut On Oil Sump

G04726079

Courtesy of BMW OF NORTH AMERICA, INC.
