Necessary preliminary tasks

• Disconnect BATTERY NEGATIVE LEAD
• Remove underbody protection with bracket at front and rear.
• Remove reinforcement plate
• Remove complete EXHAUST SYSTEM
• Remove heat shields

Release screws (1).

Remove bracket and heat shield.

Unclip lines (2).

Remove bracket (3).

Fig 1: Identifying Bracket, Lines And Heat Shield

Courtesy of BMW OF NORTH AMERICA, INC.

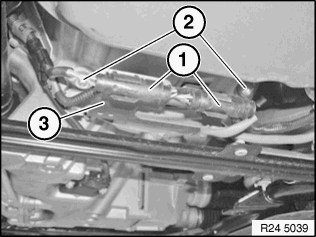

Disconnect plug connector (1).

Unfasten screws (2).

Remove retaining plate (3).

Tightening torque 24 00 2AZ .

Fig 2: Identifying Retaining Plate, Plug Connector And Screws

Release aluminum screws on right next to cable retaining plate with special tool 00 9 010 .

Aluminum screws must be replaced.

Tightening torque 24 00 2AZ .

Fig 3: Identifying Special Tool 00 9 010

Courtesy of BMW OF NORTH AMERICA, INC.

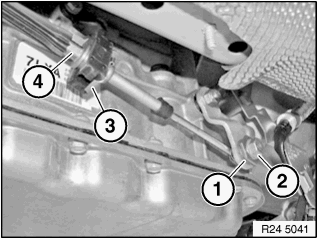

Grip clamping bush (1).

Loosen nut (2).

Detach clamp (3) downwards using a screwdriver.

Pull cable (4) out of holder.

Installation note:

ADJUST SELECTOR LEVER .

Fig 4: Identifying Clamping Sleeve, Retainer And Bracket Cable

Release screw (1).

Disconnect hydraulic lines (2) to transmission fluid cooler.

Installation note:

Replace sealing rings.

Fig 5: Identifying Hydraulic Lines Of Transmission Fluid Cooler With Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) and bracket from transmission fluid lines on oil sump.

Fig 6: Identifying Bracket Nut On Oil Sump

Courtesy of BMW OF NORTH AMERICA, INC.
