24 00 018 Adjusting selector lever (A5S 360R/390R, A4S 200R, 6HP26Z/19Z): Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Check cable for ease of movement.

Move selector lever to "P" position.

Grip clamping sleeve (1).

Slacken nut (2).

Press selector lever (3) forwards into park position. Press cable (4) in direction of arrow and release again.

Grip clamping sleeve (1).

Tighten down nut (2).

TIGHTENING TORQUE 25 16 2AZ .

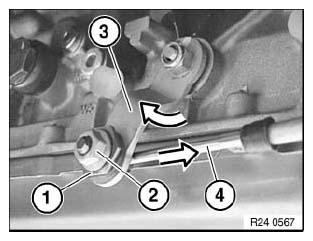

Fig 1: Pressing Gearshift Lever And Cable

Courtesy of BMW OF NORTH AMERICA, INC.
